Product Model
crcn-m5-pk-2
Selling Points

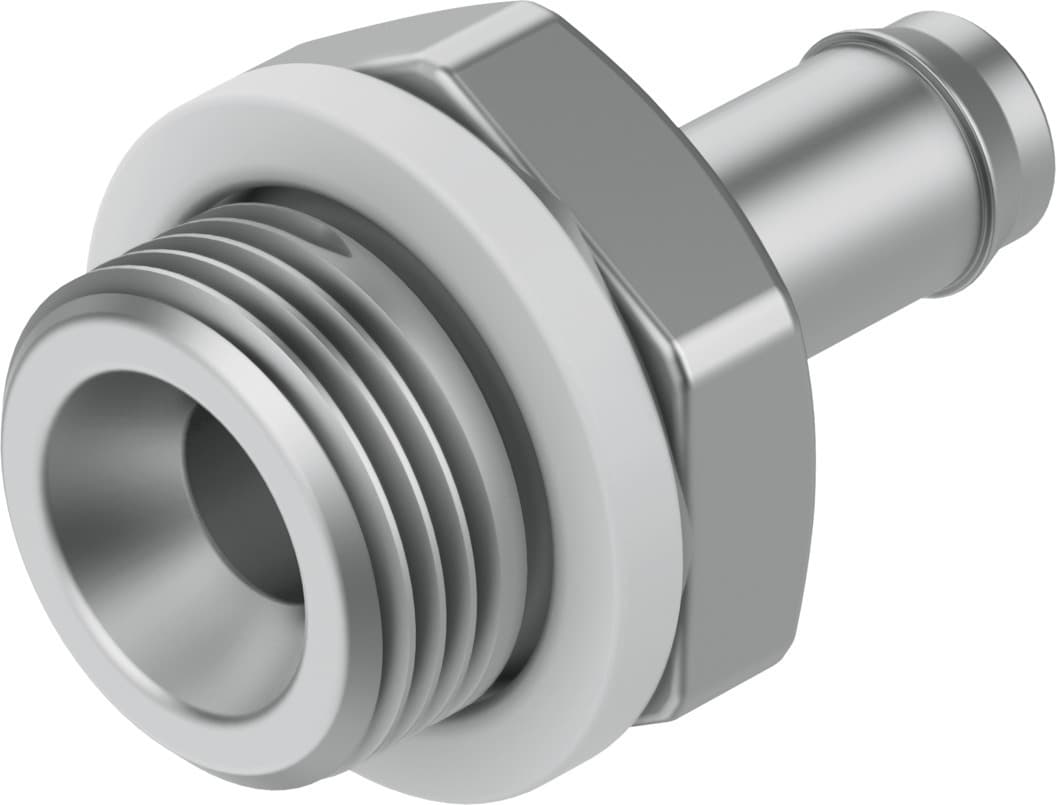

- 1The Festo CRCN-M5-PK-2 barbed fitting offers a reliable pneumatic connection with a male thread M5, ensuring secure connections in various industrial applications.
- 2This barbed fitting is designed for tubing with an outer diameter of 3 mm, providing a precise fit for pneumatic systems and minimizing leakage.
- 3Made from high-alloy stainless steel, the CRCN-M5-PK-2 exhibits excellent corrosion resistance, making it suitable for use in harsh environments.
- 4The barbed fitting features a sealing ring, ensuring a tight seal and preventing air leaks, which is crucial for maintaining system pressure and efficiency.
- 5With a nominal size of 1.5 mm and operating pressures ranging from -0.95 to 10 bar, the CRCN-M5-PK-2 is versatile and can be used in a wide range of pneumatic applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal width | 1.5mm | Type of seal on screwed plug | Sealing ring |
Pack size | 10 | Operating pressure for entire temperature range | -0.95bar 10bar |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
For use in the food industry | See supplementary material information | Ambient temperature | 0°C 60°C |
Product weight | 1.8g | Pneumatic connection 1 | External thread M5 |
Pneumatic connection 2 | for pneumatic tubing outside diameter 3 mm | Note on materials | RoHS-compliant |
Housing material | High-alloy stainless steel | Material of threaded seal | NBR High-alloy stainless steel |
Manufacturer ID | 30985 |
Specifications may be subject to change without notice
