Product Model
crdng-40- -ppv-a-s6
Selling Points

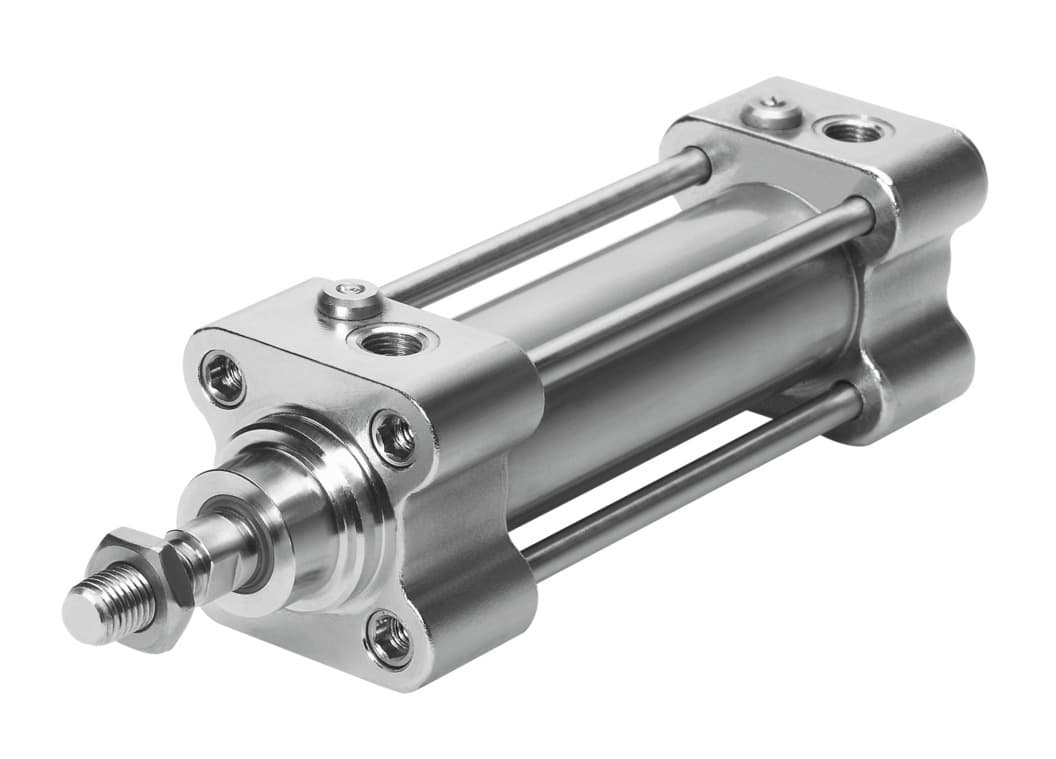

- 1The CRDNG-40-PPV-A-S6 is made from high-alloy stainless steel, ensuring durability and resistance to corrosion, making it suitable for demanding industrial environments.
- 2This cylinder features pneumatic cushioning that is adjustable at both ends, providing customizable damping and reducing wear on the piston rod.
- 3Equipped with a proximity switch, the CRDNG-40-PPV-A-S6 allows for precise position detection, enhancing control and accuracy in your applications.
- 4With a stroke range of 10 mm to 2000 mm and an operating pressure of 0.06 MPa to 1 MPa, this cylinder is versatile and can be used in various industrial settings.
- 5The CRDNG-40-PPV-A-S6 conforms to the ISO 15552 standard, ensuring compatibility with a wide range of pneumatic systems and applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 10mm 2000mm | Piston diameter | 40 mm |
Piston rod thread | M12x1.25 | Cushioning | Pneumatic cushioning, adjustable at both ends |
Mounting position | Any | Conforms to standard | ISO 15552 |
Piston rod end | External thread | Structural design | Piston Piston rod Tie rod Cylinder barrel |
Position sensing | For proximity sensor | Symbol | 00991235 |
Variants | Heat-resistant seals max. 120°C | Operating pressure | 0.6bar 10bar |
Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 4 - Particularly high corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L | For use in the food industry | See supplementary material information |
Ambient temperature | 0°C 120°C | Cushioning length | 21mm |
Theoretical force at 6 bar, retracting | 633N | Theoretical force at 6 bar, advancing | 754N |
Moving mass at 0?mm stroke | 268g | Additional moving mass per 10?mm stroke | 16g |
Basic weight with 0?mm stroke | 1420g | Additional weight per 10?mm stroke | 33g |
Type of mounting | Optionally: With internal thread With accessories | Pneumatic connection | G1/4 |
Cover material | Cast stainless steel | Seals material | FPM |
Housing material | High-alloy stainless steel | Material of piston | Wrought aluminum alloy |
Piston rod material | High-alloy stainless steel | Material of cylinder barrel | High-alloy stainless steel |
Nut material | High-alloy stainless steel | Material of bearing | Metal polymer compound |
Collar nut material | High-alloy stainless steel | Tie rod material | High-alloy stainless steel |
Manufacturer ID | 185294 |
Specifications may be subject to change without notice
