Product Model

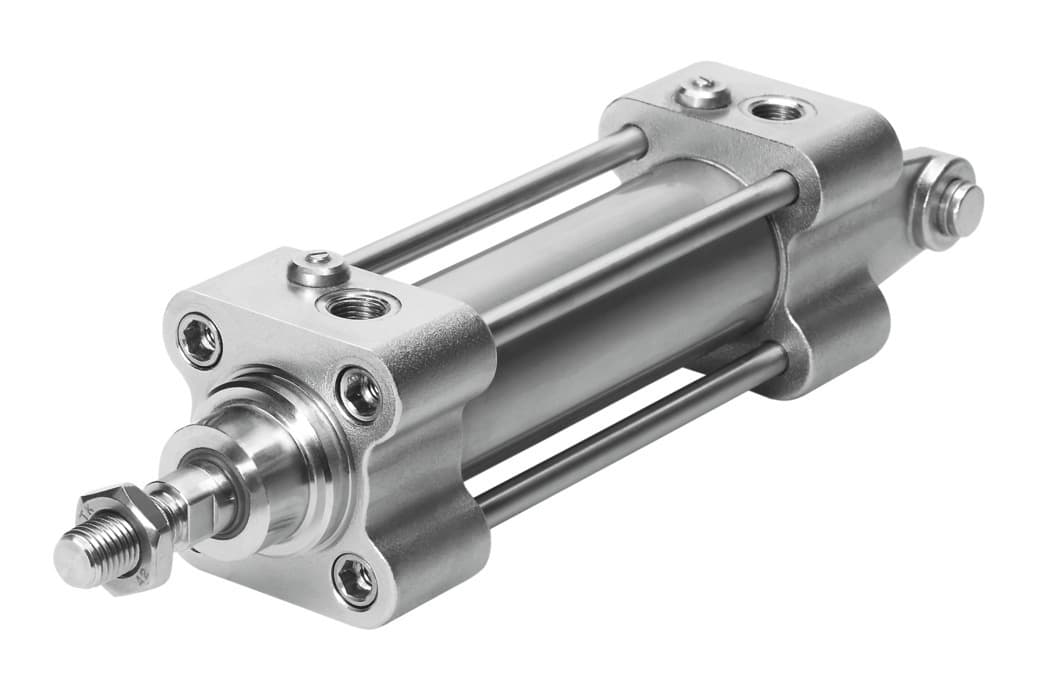

crdngs-63- -ppv-a-s6
Selling Points
- 1The CRDNGS-63- -PPV-A-S6 features a robust design with a stroke range of 10 mm to 2000 mm, ensuring precise movement in various applications.
- 2Built with high-alloy stainless steel, this cylinder offers excellent corrosion resistance and durability, making it suitable for harsh environments.
- 3Equipped with adjustable pneumatic cushioning at both ends, this cylinder provides smooth operation and reduces wear and tear.
- 4Designed for double-acting operation, the CRDNGS-63- -PPV-A-S6 can handle both advancing and retracting strokes efficiently.
- 5Conforming to ISO 15552 and VDMA24364-B2-L, this cylinder meets stringent industry standards for performance and safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 10mm 2000mm | Piston diameter | 63 mm |
Piston rod thread | M16x1.5 | Based on norm | ISO 15552 |
Cushioning | Pneumatic cushioning, adjustable at both ends | Mounting position | Any |
Piston rod end | External thread | Structural design | Piston Piston rod Pivoting clevis Tie rod Cylinder barrel |
Position sensing | For proximity sensor | Symbol | 00991235 |
Variants | End cap with swiveling rod eye | Operating pressure | 0.6bar 10bar |
Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 4 - Particularly high corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L | For use in the food industry | See supplementary material information |
Ambient temperature | 0°C 120°C | Cushioning length | 23mm |
Theoretical force at 6 bar, retracting | 1682N | Theoretical force at 6 bar, advancing | 1870N |
Moving mass at 0?mm stroke | 609g | Additional moving mass per 10?mm stroke | 25g |
Basic weight with 0?mm stroke | 3807g | Additional weight per 10?mm stroke | 60g |
Type of mounting | Optionally: With internal thread With accessories | Pneumatic connection | G3/8 |
Cover material | Cast stainless steel | Seals material | FPM |
Housing material | High-alloy stainless steel | Material of piston | Wrought aluminum alloy |
Piston rod material | High-alloy stainless steel | Material of cylinder barrel | High-alloy stainless steel |
Nut material | High-alloy stainless steel | Material of bearing | Metal polymer compound |
Collar nut material | High-alloy stainless steel | Tie rod material | High-alloy stainless steel |
Manufacturer ID | 185303 |
Specifications may be subject to change without notice
