Product Model
crdsnu-12-100-p-a
Selling Points

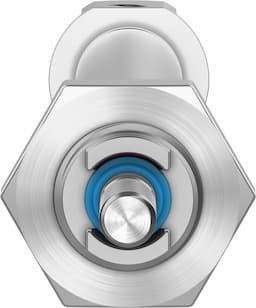

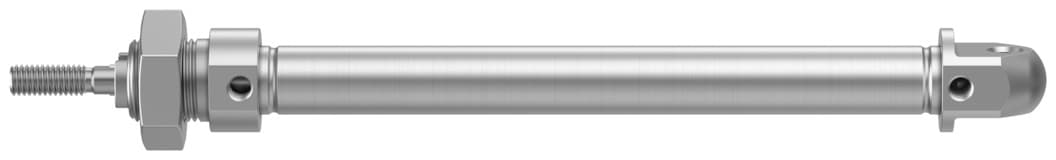

- 1The Festo CRDSNU-12-100-P-A is a round, standards-based cylinder with a 12mm piston diameter and a 100mm stroke, designed to meet ISO 6432 standards for precision and reliability.
- 2This cylinder features elastic cushioning rings/pads at both ends, ensuring smooth operation and reducing wear on the piston and cylinder barrel.
- 3Constructed from high-alloy stainless steel, the CRDSNU-12-100-P-A offers excellent corrosion resistance and durability, making it suitable for various industrial applications.
- 4The cylinder operates double-acting with compressed air as per ISO 8573-1:2010, allowing for efficient and controlled movement in both directions.
- 5With a basic weight of 101 grams and an additional weight of 4 grams per 10mm stroke, this cylinder is designed for versatility and ease of integration into pneumatic systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 100mm | Piston diameter | 12 mm |
Piston rod thread | M6 | Cushioning | Elastic cushioning rings/pads at both ends |
Mounting position | Any | Conforms to standard | ISO 6432 |
Piston rod end | External thread | Structural design | Piston Piston rod Cylinder barrel |
Position sensing | For proximity sensor | Symbol | 00991217 |
Operating pressure | 1bar 10bar | Mode of operation | Double-acting |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 3 - High corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Cleanroom class | Class 6 according to ISO 14644-1 | For use in the food industry | See declaration of conformity |
Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.07J |
Theoretical force at 6 bar, retracting | 51N | Theoretical force at 6 bar, advancing | 68N |
Moving mass at 0?mm stroke | 19g | Additional moving mass per 10?mm stroke | 2g |
Basic weight with 0?mm stroke | 101g | Additional weight per 10?mm stroke | 4g |
Type of mounting | With accessories | Pneumatic connection | M5 |
Note on materials | RoHS-compliant | Cover material | High-alloy stainless steel |
Piston rod material | High-alloy stainless steel | Material of cylinder barrel | High-alloy stainless steel |
Manufacturer ID | 8152529 |
Specifications may be subject to change without notice
