Product Model

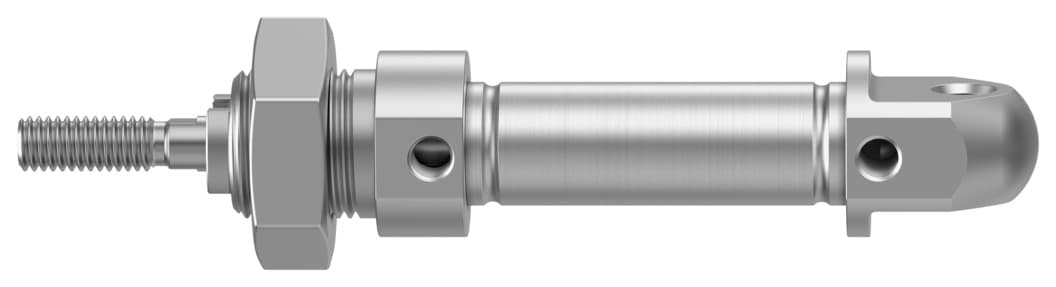

crdsnu-12-10-p-a
Selling Points
- 1The CRDSNU-12-10-P-A is made from high-alloy stainless steel, ensuring high corrosion resistance and durability in various environments.
- 2This cylinder features a 12mm piston diameter, 10mm stroke, and M6 piston rod thread. It is designed to operate with compressed air as per ISO 8573-1:2010.
- 3Equipped with elastic cushioning rings/pads at both ends for smooth operation and any mounting position, making it versatile for different applications.
- 4The CRDSNU-12-10-P-A is designed for proximity sensor readiness, enhancing its functionality in precision control systems.
- 5It operates within a pressure range of 0.1 MPa to 1 MPa (1 bar to 10 bar) and supports double-acting mode, providing reliable performance in various industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 10mm | Piston diameter | 12 mm |
Piston rod thread | M6 | Cushioning | Elastic cushioning rings/pads at both ends |
Mounting position | Any | Conforms to standard | ISO 6432 |
Piston rod end | External thread | Structural design | Piston Piston rod Cylinder barrel |
Position sensing | For proximity sensor | Symbol | 00991217 |
Operating pressure | 1bar 10bar | Mode of operation | Double-acting |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 3 - High corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Cleanroom class | Class 6 according to ISO 14644-1 | For use in the food industry | See declaration of conformity |
Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.07J |
Theoretical force at 6 bar, retracting | 51N | Theoretical force at 6 bar, advancing | 68N |
Moving mass at 0?mm stroke | 19g | Additional moving mass per 10?mm stroke | 2g |
Basic weight with 0?mm stroke | 101g | Additional weight per 10?mm stroke | 4g |
Type of mounting | With accessories | Pneumatic connection | M5 |
Note on materials | RoHS-compliant | Cover material | High-alloy stainless steel |
Piston rod material | High-alloy stainless steel | Material of cylinder barrel | High-alloy stainless steel |
Manufacturer ID | 8152524 |
Specifications may be subject to change without notice
