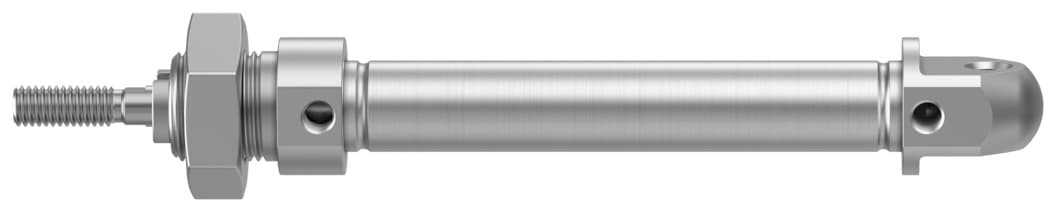

Product Model
crdsnu-12-50-p-a
Selling Points
- 1The CRDSNU-12-50-P-A is constructed from high-alloy stainless steel, ensuring durability and resistance to corrosion in demanding environments.
- 2Equipped with elastic cushioning rings/pads at both ends, this cylinder provides smooth operation and reduces wear on the piston rod.
- 3Designed for double-acting operation, the CRDSNU-12-50-P-A can move in both directions, offering flexibility in various applications.
- 4Compatible with compressed air as per ISO 8573-1:2010, this cylinder operates efficiently in a wide range of pneumatic systems.
- 5Featuring position sensing via proximity sensor, the CRDSNU-12-50-P-A ensures accurate control and monitoring of its movement.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 50mm | Piston diameter | 12 mm |
Piston rod thread | M6 | Cushioning | Elastic cushioning rings/pads at both ends |
Mounting position | Any | Conforms to standard | ISO 6432 |
Piston rod end | External thread | Structural design | Piston Piston rod Cylinder barrel |
Position sensing | For proximity sensor | Symbol | 00991217 |
Operating pressure | 1bar 10bar | Mode of operation | Double-acting |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 3 - High corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Cleanroom class | Class 6 according to ISO 14644-1 | For use in the food industry | See declaration of conformity |
Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.07J |
Theoretical force at 6 bar, retracting | 51N | Theoretical force at 6 bar, advancing | 68N |
Moving mass at 0?mm stroke | 19g | Additional moving mass per 10?mm stroke | 2g |
Basic weight with 0?mm stroke | 101g | Additional weight per 10?mm stroke | 4g |
Type of mounting | With accessories | Pneumatic connection | M5 |
Note on materials | RoHS-compliant | Cover material | High-alloy stainless steel |
Piston rod material | High-alloy stainless steel | Material of cylinder barrel | High-alloy stainless steel |
Manufacturer ID | 8152527 |
Specifications may be subject to change without notice
