Product Model

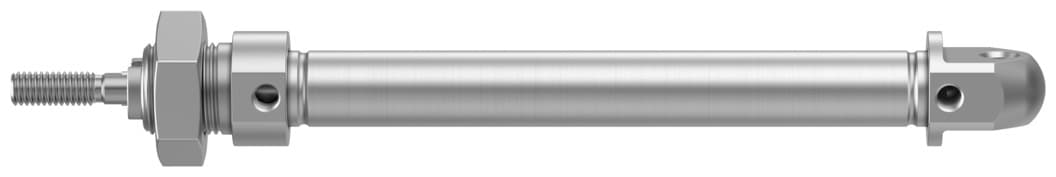

crdsnu-12-80-p-a
Selling Points
- 1The CRDSNU-12-80-P-A features a stroke of 80 mm, making it suitable for a wide range of industrial applications where precise movement is required.
- 2With a piston diameter of 12 mm and an external thread on the piston rod end, this cylinder offers robust and reliable performance.
- 3The CRDSNU-12-80-P-A operates within a pressure range of 0.1 MPa to 1 MPa (1 bar to 10 bar), ensuring efficient operation under various conditions.
- 4Equipped with elastic cushioning rings/plates at both ends, this cylinder provides smooth and controlled motion, reducing wear and tear.
- 5Conforming to the ISO 6432 standard, the CRDSNU-12-80-P-A ensures compatibility with a variety of pneumatic systems and accessories, enhancing its versatility in industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 80mm | Piston diameter | 12 mm |
Piston rod thread | M6 | Cushioning | Elastic cushioning rings/pads at both ends |
Mounting position | Any | Conforms to standard | ISO 6432 |
Piston rod end | External thread | Structural design | Piston Piston rod Cylinder barrel |
Position sensing | For proximity sensor | Symbol | 00991217 |
Operating pressure | 1bar 10bar | Mode of operation | Double-acting |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 3 - High corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Cleanroom class | Class 6 according to ISO 14644-1 | For use in the food industry | See declaration of conformity |
Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.07J |
Theoretical force at 6 bar, retracting | 51N | Theoretical force at 6 bar, advancing | 68N |
Moving mass at 0?mm stroke | 19g | Additional moving mass per 10?mm stroke | 2g |
Basic weight with 0?mm stroke | 101g | Additional weight per 10?mm stroke | 4g |
Type of mounting | With accessories | Pneumatic connection | M5 |
Note on materials | RoHS-compliant | Cover material | High-alloy stainless steel |
Piston rod material | High-alloy stainless steel | Material of cylinder barrel | High-alloy stainless steel |
Manufacturer ID | 8152528 |
Specifications may be subject to change without notice
