Product Model
crdsnu-16-15-p-a
Selling Points

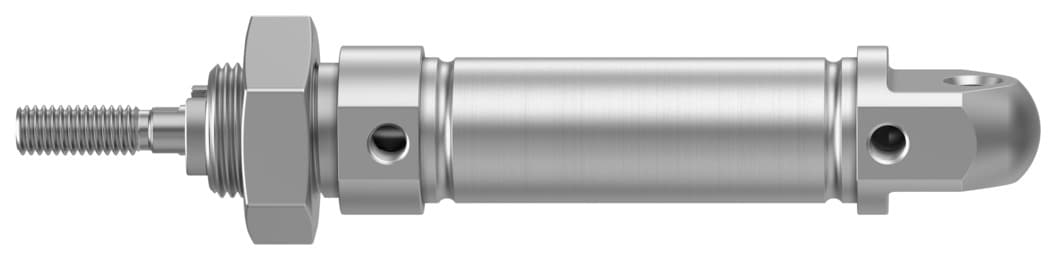

- 1The Festo CRDSNU-16-15-P-A standards-based cylinder boasts a 16mm piston diameter and a 15mm stroke, making it perfect for various compressed air applications.
- 2Equipped with elastic cushioning rings/pads at both ends, this cylinder ensures smooth operation and reduces wear and tear.
- 3Conforming to the ISO 6432 standard, the CRDSNU-16-15-P-A offers standardized dimensions and mounting interfaces for easy integration into your system.
- 4The cylinder operates within a temperature range of -20°C to 80°C and supports double-acting mode with compressed air as per ISO 8573-1:2010.
- 5Designed for high corrosion resistance (CRC 3), the CRDSNU-16-15-P-A features high-alloy stainless steel materials for the piston rod, cylinder barrel, and cover material.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 15mm | Piston diameter | 16 mm |
Piston rod thread | M6 | Cushioning | Elastic cushioning rings/pads at both ends |
Mounting position | Any | Conforms to standard | ISO 6432 |
Piston rod end | External thread | Structural design | Piston Piston rod Cylinder barrel |
Position sensing | For proximity sensor | Symbol | 00991217 |
Operating pressure | 1bar 10bar | Mode of operation | Double-acting |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 3 - High corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Cleanroom class | Class 6 according to ISO 14644-1 | For use in the food industry | See declaration of conformity |
Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.15J |
Theoretical force at 6 bar, retracting | 104N | Theoretical force at 6 bar, advancing | 121N |
Moving mass at 0?mm stroke | 21g | Additional moving mass per 10?mm stroke | 2g |
Basic weight with 0?mm stroke | 130g | Additional weight per 10?mm stroke | 5g |
Type of mounting | With accessories | Pneumatic connection | M5 |
Note on materials | RoHS-compliant | Cover material | High-alloy stainless steel |
Piston rod material | High-alloy stainless steel | Material of cylinder barrel | High-alloy stainless steel |
Manufacturer ID | 8152549 |
Specifications may be subject to change without notice
