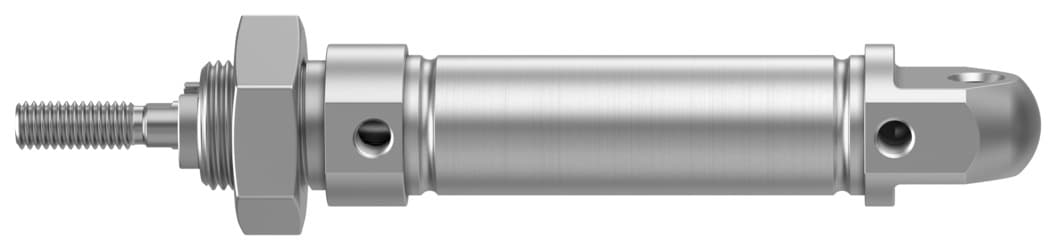

CRDSNU-16-20-P-A Pneumatic Cylinder by Festo - High-Quality Automation Solutions

Selling Points

1Constructed from high-alloy stainless steel for durability and corrosion resistance.
2Equipped with elastic cushioning rings/plates at both ends for smooth operation and reduced wear.
3Meets international standards for pneumatic cylinders, ensuring compatibility and reliability.
4Designed for double-acting operations, providing precise control and efficient movement.
5Offers flexible mounting positions, making it suitable for various industrial applications.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	20mm	Piston diameter	16 mm
Piston rod thread	M6	Cushioning	Elastic cushioning rings/pads at both ends
Mounting position	Any	Conforms to standard	ISO 6432
Piston rod end	External thread	Structural design	Piston Piston rod Cylinder barrel
Position sensing	For proximity sensor	Symbol	00991217
Operating pressure	1bar 10bar	Mode of operation	Double-acting
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	3 - High corrosion stress	LABS (PWIS) conformity	VDMA24364-B2-L
Cleanroom class	Class 6 according to ISO 14644-1	For use in the food industry	See declaration of conformity
Ambient temperature	-20°C 80°C	Impact energy in the end positions	0.15J
Theoretical force at 6 bar, retracting	104N	Theoretical force at 6 bar, advancing	121N
Moving mass at 0?mm stroke	21g	Additional moving mass per 10?mm stroke	2g
Basic weight with 0?mm stroke	130g	Additional weight per 10?mm stroke	5g
Type of mounting	With accessories	Pneumatic connection	M5
Note on materials	RoHS-compliant	Cover material	High-alloy stainless steel
Piston rod material	High-alloy stainless steel	Material of cylinder barrel	High-alloy stainless steel
Manufacturer ID	8152550

Specifications may be subject to change without notice
