Product Model
crdsnu-16-25-p-a
Selling Points

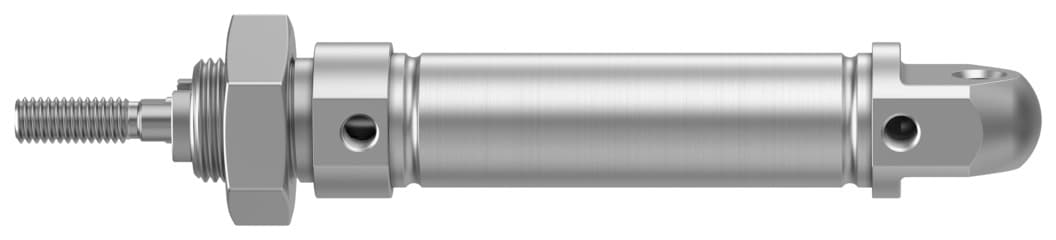

- 1The Festo CRDSNU-16-25-P-A standards-based cylinder offers a 16mm piston diameter and a 25mm stroke, making it suitable for a variety of precision automation applications.
- 2Equipped with elastic cushioning rings/plates on both sides, this cylinder provides enhanced stability and durability, ensuring smooth operation in demanding environments.
- 3Designed to meet ISO 6432 standards, the CRDSNU-16-25-P-A cylinder ensures compatibility with a wide range of industrial automation systems, offering a high level of reliability and consistency.
- 4The cylinder features a high-alloy stainless steel construction, ensuring excellent corrosion resistance and durability in various industrial settings.
- 5With a standard temperature range and optional proximity sensor integration, the CRDSNU-16-25-P-A cylinder is versatile and adaptable to different application requirements.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 25mm | Piston diameter | 16 mm |
Piston rod thread | M6 | Cushioning | Elastic cushioning rings/pads at both ends |
Mounting position | Any | Conforms to standard | ISO 6432 |
Piston rod end | External thread | Structural design | Piston Piston rod Cylinder barrel |
Position sensing | For proximity sensor | Symbol | 00991217 |
Operating pressure | 1bar 10bar | Mode of operation | Double-acting |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 3 - High corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Cleanroom class | Class 6 according to ISO 14644-1 | For use in the food industry | See declaration of conformity |
Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.15J |
Theoretical force at 6 bar, retracting | 104N | Theoretical force at 6 bar, advancing | 121N |
Moving mass at 0?mm stroke | 21g | Additional moving mass per 10?mm stroke | 2g |
Basic weight with 0?mm stroke | 130g | Additional weight per 10?mm stroke | 5g |
Type of mounting | With accessories | Pneumatic connection | M5 |
Note on materials | RoHS-compliant | Cover material | High-alloy stainless steel |
Piston rod material | High-alloy stainless steel | Material of cylinder barrel | High-alloy stainless steel |
Manufacturer ID | 8152551 |
Specifications may be subject to change without notice
