Product Model
crdsnu-16-40-p-a
Selling Points

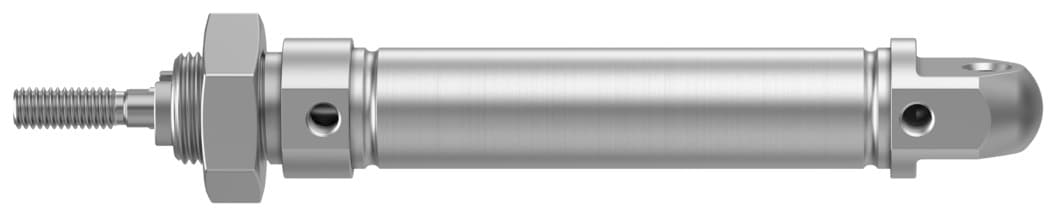

- 1The Festo CRDSNU-16-40-P-A pneumatic cylinder is designed to meet ISO 6432 standards, ensuring high precision and reliability in your pneumatic systems.
- 2With a 16mm piston diameter and 40mm stroke, this cylinder offers a versatile solution for various industrial applications, including automation and robotics.
- 3Equipped with elastic cushioning rings/plates at both ends, the CRDSNU-16-40-P-A provides smooth operation and reduces wear on the cylinder.
- 4The cylinder operates within a standard temperature range and can be mounted in any position, making it easy to integrate into your existing setup.
- 5Designed for use with compressed air in accordance with ISO 8573-1:2010 [7:4:4], this cylinder ensures reliable performance in a variety of operating conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 40mm | Piston diameter | 16 mm |
Piston rod thread | M6 | Cushioning | Elastic cushioning rings/pads at both ends |
Mounting position | Any | Conforms to standard | ISO 6432 |
Piston rod end | External thread | Structural design | Piston Piston rod Cylinder barrel |
Position sensing | For proximity sensor | Symbol | 00991217 |
Operating pressure | 1bar 10bar | Mode of operation | Double-acting |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 3 - High corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Cleanroom class | Class 6 according to ISO 14644-1 | For use in the food industry | See declaration of conformity |
Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.15J |
Theoretical force at 6 bar, retracting | 104N | Theoretical force at 6 bar, advancing | 121N |
Moving mass at 0?mm stroke | 21g | Additional moving mass per 10?mm stroke | 2g |
Basic weight with 0?mm stroke | 130g | Additional weight per 10?mm stroke | 5g |
Type of mounting | With accessories | Pneumatic connection | M5 |
Note on materials | RoHS-compliant | Cover material | High-alloy stainless steel |
Piston rod material | High-alloy stainless steel | Material of cylinder barrel | High-alloy stainless steel |
Manufacturer ID | 8152552 |
Specifications may be subject to change without notice
