Product Model

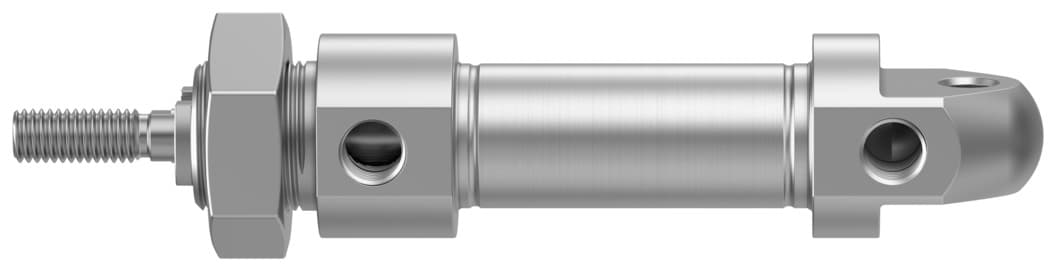

crdsnu-20-25-p-a
Selling Points
- 1The CRDSNU-20-25-P-A features a 20 mm piston diameter and a 25 mm stroke, making it suitable for a variety of precise applications.
- 2This cylinder is designed with elastic cushioning rings/plates at both ends, ensuring smooth operation and reducing wear.
- 3It conforms to the ISO 6432 standard and CETOP RP 52 P, ensuring compatibility with a wide range of pneumatic systems.
- 4The CRDSNU-20-25-P-A operates double-acting, allowing for both forward and reverse motion, and is compatible with compressed air to ISO 8573-1:2010.
- 5With a high-alloy stainless steel piston rod and cylinder barrel, this cylinder offers high corrosion resistance and durability, making it suitable for use in harsh environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 25mm | Piston diameter | 20 mm |
Piston rod thread | M8 | Cushioning | Elastic cushioning rings/pads at both ends |
Mounting position | Any | Conforms to standard | ISO 6432 |
Piston rod end | External thread | Structural design | Piston Piston rod Cylinder barrel |
Position sensing | For proximity sensor | Symbol | 00991217 |
Operating pressure | 1bar 10bar | Mode of operation | Double-acting |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 3 - High corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Cleanroom class | Class 6 according to ISO 14644-1 | For use in the food industry | See declaration of conformity |
Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.2J |
Theoretical force at 6 bar, retracting | 158N | Theoretical force at 6 bar, advancing | 188N |
Moving mass at 0?mm stroke | 42g | Additional moving mass per 10?mm stroke | 4g |
Basic weight with 0?mm stroke | 310g | Additional weight per 10?mm stroke | 7g |
Type of mounting | With accessories | Pneumatic connection | G1/8 |
Note on materials | RoHS-compliant | Cover material | High-alloy stainless steel |
Piston rod material | High-alloy stainless steel | Material of cylinder barrel | High-alloy stainless steel |
Manufacturer ID | 8152560 |
Specifications may be subject to change without notice
