Product Model

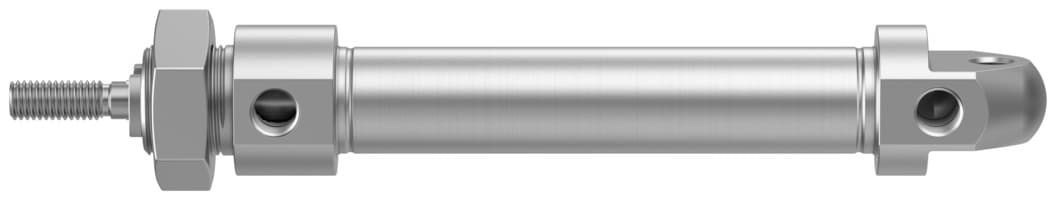

crdsnu-20-80-p-a
Selling Points
- 1The Festo CRDSNU-20-80-P-A is a standards-based cylinder that conforms to ISO 6432, ensuring high precision and reliability in your applications.
- 2With a piston diameter of 20mm and a stroke of 80mm, this cylinder offers a versatile range for various industrial needs, including double-acting operations.
- 3Equipped with elastic cushioning rings/plates at both ends, the CRDSNU-20-80-P-A provides smooth operation and reduces wear on the cylinder.
- 4Made from high-alloy stainless steel, this cylinder offers high corrosion resistance (CRC 3) and is suitable for use in cleanroom environments (Class 6 according to ISO 14644-1).
- 5Designed for use with compressed air to ISO 8573-1:2010, the CRDSNU-20-80-P-A supports lubricated operation for enhanced performance and longevity.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 80mm | Piston diameter | 20 mm |
Piston rod thread | M8 | Cushioning | Elastic cushioning rings/pads at both ends |
Mounting position | Any | Conforms to standard | ISO 6432 |
Piston rod end | External thread | Structural design | Piston Piston rod Cylinder barrel |
Position sensing | For proximity sensor | Symbol | 00991217 |
Operating pressure | 1bar 10bar | Mode of operation | Double-acting |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 3 - High corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Cleanroom class | Class 6 according to ISO 14644-1 | For use in the food industry | See declaration of conformity |
Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.2J |
Theoretical force at 6 bar, retracting | 158N | Theoretical force at 6 bar, advancing | 188N |
Moving mass at 0?mm stroke | 42g | Additional moving mass per 10?mm stroke | 4g |
Basic weight with 0?mm stroke | 310g | Additional weight per 10?mm stroke | 7g |
Type of mounting | With accessories | Pneumatic connection | G1/8 |
Note on materials | RoHS-compliant | Cover material | High-alloy stainless steel |
Piston rod material | High-alloy stainless steel | Material of cylinder barrel | High-alloy stainless steel |
Manufacturer ID | 8152563 |
Specifications may be subject to change without notice
