Product Model
crdsnu-25-50-p-a
Selling Points

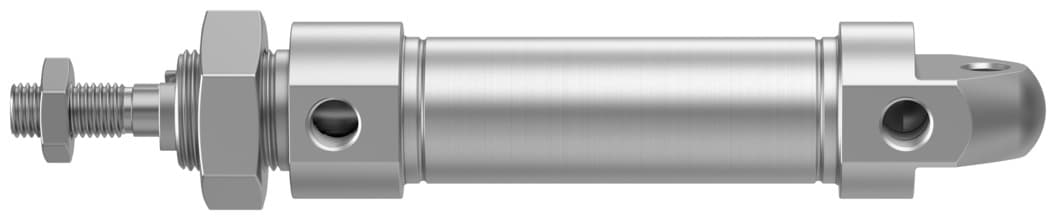

- 1The Festo CRDSNU-25-50-P-A is a round, standards-based cylinder designed to meet ISO 6432 standards, ensuring compatibility and reliability in various industrial applications.
- 2This double-acting cylinder features a 25mm piston diameter and a 50mm stroke, providing ample movement for precise control and positioning.
- 3Equipped with elastic cushioning rings/plates on both sides, the CRDSNU-25-50-P-A offers enhanced durability and smooth operation, reducing wear and tear.
- 4The cylinder is constructed from stainless steel, making it resistant to corrosion and suitable for use in harsh environments.
- 5With G1/8 ports and M10x1.25 male rod thread, this cylinder is easily integratable into existing pneumatic systems, ensuring seamless operation and minimal setup time.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 50mm | Piston diameter | 25 mm |
Piston rod thread | M10x1.25 | Cushioning | Elastic cushioning rings/pads at both ends |
Mounting position | Any | Conforms to standard | ISO 6432 |
Piston rod end | External thread | Structural design | Piston Piston rod Cylinder barrel |
Position sensing | For proximity sensor | Symbol | 00991217 |
Operating pressure | 1bar 10bar | Mode of operation | Double-acting |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 3 - High corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Cleanroom class | Class 6 according to ISO 14644-1 | For use in the food industry | See declaration of conformity |
Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.3J |
Theoretical force at 6 bar, retracting | 247N | Theoretical force at 6 bar, advancing | 295N |
Moving mass at 0?mm stroke | 73g | Additional moving mass per 10?mm stroke | 6g |
Basic weight with 0?mm stroke | 410g | Additional weight per 10?mm stroke | 11g |
Type of mounting | With accessories | Pneumatic connection | G1/8 |
Note on materials | RoHS-compliant | Cover material | High-alloy stainless steel |
Piston rod material | High-alloy stainless steel | Material of cylinder barrel | High-alloy stainless steel |
Manufacturer ID | 8152632 |
Specifications may be subject to change without notice
