Product Model

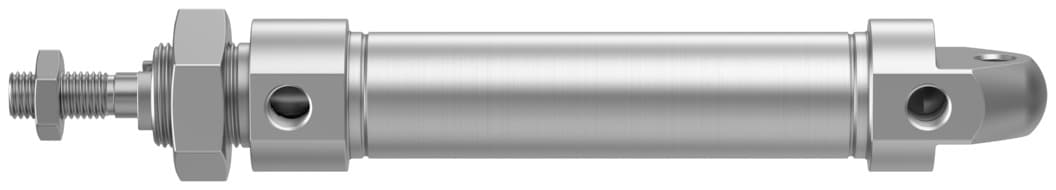

crdsnu-25-80-p-a
Selling Points
- 1The CRDSNU-25-80-P-A is designed to provide precise and reliable performance, making it ideal for various industrial applications.
- 2This cylinder conforms to the ISO 6432 standard, ensuring compatibility and consistency in your pneumatic systems.
- 3With double-acting operation, the CRDSNU-25-80-P-A can move in both directions, enhancing flexibility and efficiency in your processes.
- 4Equipped with elastic cushioning rings at both ends, this cylinder ensures smooth operation and reduces wear and tear.
- 5Featuring high-corrosion resistance class CRC 3, the CRDSNU-25-80-P-A is suitable for use in harsh environments, including food industry applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 80mm | Piston diameter | 25 mm |
Piston rod thread | M10x1.25 | Cushioning | Elastic cushioning rings/pads at both ends |
Mounting position | Any | Conforms to standard | ISO 6432 |
Piston rod end | External thread | Structural design | Piston Piston rod Cylinder barrel |
Position sensing | For proximity sensor | Symbol | 00991217 |
Operating pressure | 1bar 10bar | Mode of operation | Double-acting |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 3 - High corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Cleanroom class | Class 6 according to ISO 14644-1 | For use in the food industry | See declaration of conformity |
Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.3J |
Theoretical force at 6 bar, retracting | 247N | Theoretical force at 6 bar, advancing | 295N |
Moving mass at 0?mm stroke | 73g | Additional moving mass per 10?mm stroke | 6g |
Basic weight with 0?mm stroke | 410g | Additional weight per 10?mm stroke | 11g |
Type of mounting | With accessories | Pneumatic connection | G1/8 |
Note on materials | RoHS-compliant | Cover material | High-alloy stainless steel |
Piston rod material | High-alloy stainless steel | Material of cylinder barrel | High-alloy stainless steel |
Manufacturer ID | 8152633 |
Specifications may be subject to change without notice
