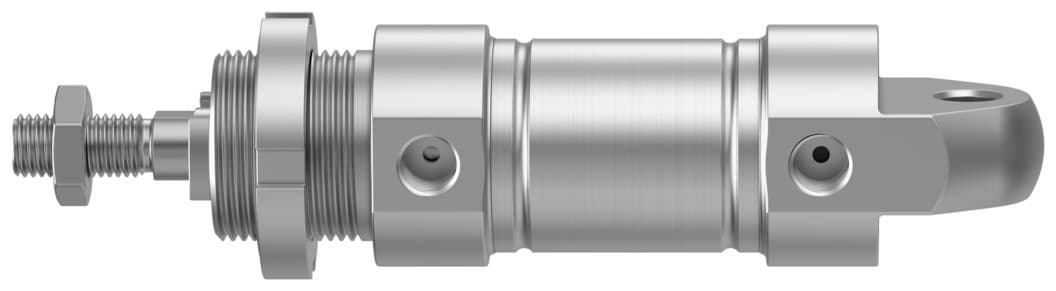

Festo CRDSNU-32-10-P-A Round Cylinder - High-Quality Pneumatic Solution

Selling Points

1The CRDSNU-32-10-P-A is made from high-alloy stainless steel, ensuring durability and resistance to corrosion.
2Equipped with elastic cushioning rings/plates at both ends for smooth and controlled movements.
3Designed for double-acting operations, allowing for precise control and efficient use of compressed air.
4Suitable for use with food and cleanroom environments, meeting ISO 14644-1 Class 6 standards.
5Features proximity switch for precise position detection, ensuring accurate control and reliable operation.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	10mm	Piston diameter	32 mm
Piston rod thread	M10x1.25	Cushioning	Elastic cushioning rings/pads at both ends
Mounting position	Any	Piston rod end	External thread
Structural design	Piston Piston rod Cylinder barrel	Position sensing	For proximity sensor
Symbol	00991217	Operating pressure	1bar 10bar
Mode of operation	Double-acting	Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media	Operation with oil lubrication possible (required for further use)	Corrosion resistance class (CRC)	3 - High corrosion stress
LABS (PWIS) conformity	VDMA24364-B2-L	Cleanroom class	Class 6 according to ISO 14644-1
For use in the food industry	See declaration of conformity	Ambient temperature	-20°C 80°C
Theoretical force at 6 bar, retracting	415N	Theoretical force at 6 bar, advancing	483N
Moving mass at 0?mm stroke	118g	Additional moving mass per 10?mm stroke	9g
Basic weight with 0?mm stroke	670g	Additional weight per 10?mm stroke	15g
Type of mounting	With accessories	Pneumatic connection	G1/8
Note on materials	RoHS-compliant	Cover material	High-alloy stainless steel
Piston rod material	High-alloy stainless steel	Material of cylinder barrel	High-alloy stainless steel
Manufacturer ID	8152637

Specifications may be subject to change without notice
