Product Model

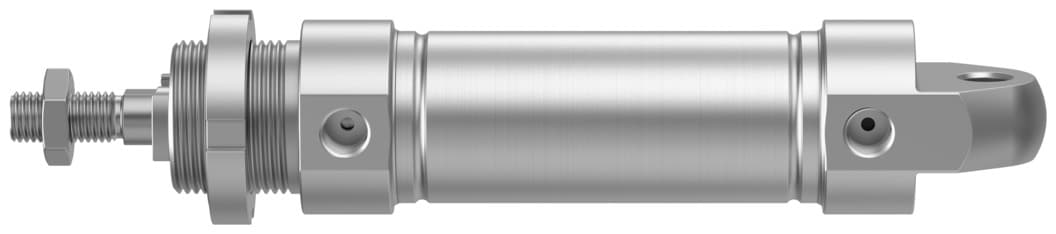

crdsnu-32-50-p-a
Selling Points
- 1The CRDSNU-32-50-P-A offers precise control and accuracy due to its double-acting operation and proximity sensing capabilities, ensuring reliable performance in demanding applications.
- 2Made from high-alloy stainless steel, this cylinder provides excellent corrosion resistance and durability, making it suitable for use in harsh environments and the food industry.
- 3Equipped with elastic cushioning rings/pads at both ends, the CRDSNU-32-50-P-A ensures smooth operation and reduces wear and tear on the cylinder, extending its lifespan.
- 4The cylinder can be mounted in any position, offering flexibility in system design and integration. It also features an external thread at the piston rod end for easy connection.
- 5The CRDSNU-32-50-P-A meets ISO 6432 and ISO 8573-1:2010 standards, ensuring compatibility with various pneumatic systems and operating environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 50mm | Piston diameter | 32 mm |
Piston rod thread | M10x1.25 | Cushioning | Elastic cushioning rings/pads at both ends |
Mounting position | Any | Piston rod end | External thread |
Structural design | Piston Piston rod Cylinder barrel | Position sensing | For proximity sensor |
Symbol | 00991217 | Operating pressure | 1bar 10bar |
Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 3 - High corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
For use in the food industry | See declaration of conformity | Ambient temperature | -20°C 80°C |
Theoretical force at 6 bar, retracting | 415N | Theoretical force at 6 bar, advancing | 483N |
Moving mass at 0?mm stroke | 118g | Additional moving mass per 10?mm stroke | 9g |
Basic weight with 0?mm stroke | 670g | Additional weight per 10?mm stroke | 15g |
Type of mounting | With accessories | Pneumatic connection | G1/8 |
Note on materials | RoHS-compliant | Cover material | High-alloy stainless steel |
Piston rod material | High-alloy stainless steel | Material of cylinder barrel | High-alloy stainless steel |
Manufacturer ID | 8152640 |
Specifications may be subject to change without notice
