Product Model

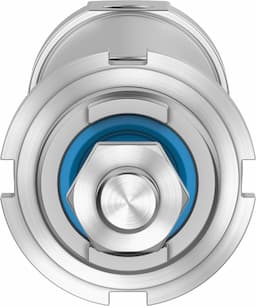

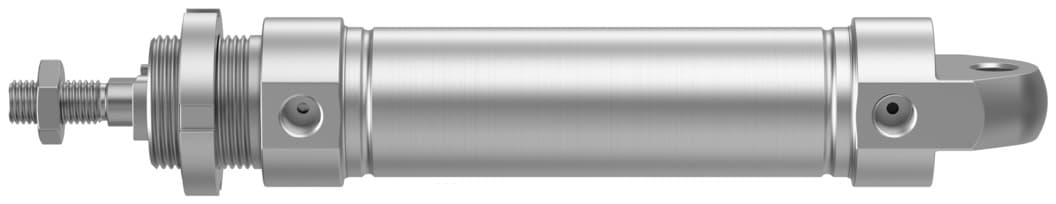

crdsnu-32-80-p-a
Selling Points
- 1The CRDSNU-32-80-P-A is made from high-alloy stainless steel, ensuring durability and resistance to corrosion.
- 2Equipped with elastic cushioning rings/plates at both ends, providing smooth operation and reducing wear on the cylinder.
- 3Available for any mounting position, offering flexibility in installation and integration into various systems.
- 4Designed for double-acting operations, allowing for both forward and backward movements with compressed air.
- 5Meets the requirements for use in the food industry, ensuring cleanliness and safety standards are met.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 80mm | Piston diameter | 32 mm |
Piston rod thread | M10x1.25 | Cushioning | Elastic cushioning rings/pads at both ends |
Mounting position | Any | Piston rod end | External thread |
Structural design | Piston Piston rod Cylinder barrel | Position sensing | For proximity sensor |
Symbol | 00991217 | Operating pressure | 1bar 10bar |
Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 3 - High corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
For use in the food industry | See declaration of conformity | Ambient temperature | -20°C 80°C |
Theoretical force at 6 bar, retracting | 415N | Theoretical force at 6 bar, advancing | 483N |
Moving mass at 0?mm stroke | 118g | Additional moving mass per 10?mm stroke | 9g |
Basic weight with 0?mm stroke | 670g | Additional weight per 10?mm stroke | 15g |
Type of mounting | With accessories | Pneumatic connection | G1/8 |
Note on materials | RoHS-compliant | Cover material | High-alloy stainless steel |
Piston rod material | High-alloy stainless steel | Material of cylinder barrel | High-alloy stainless steel |
Manufacturer ID | 8152641 |
Specifications may be subject to change without notice
