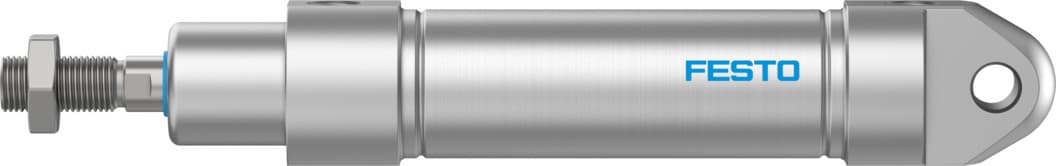

crdsnu-b-25-100-pps-a-mg-a1
Selling Points
- 1High-Quality Construction: The CRDSNU-B-25-100-PPS-A-MG-A1 is built with high-alloyed stainless steel materials, ensuring durability and resistance to corrosion.
- 2Standardized Dimensions: This cylinder adheres to the ISO 6432 standard, providing compatibility with a wide range of automation systems.
- 3Self-Adjusting Cushioning: Equipped with self-adjusting pneumatic end-position cushioning (PPS), this cylinder ensures smooth operation and reduces wear and tear.
- 4Versatile Mounting Options: The cylinder can be mounted in any position, offering flexibility in various automation applications.
- 5Advanced Position Sensing: Featuring proximity switch position detection, this cylinder provides precise control and monitoring capabilities.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 100mm | Piston diameter | 25 mm |
Based on norm | ISO 6432 | Cushioning | Self-adjusting pneumatic end-position cushioning |
Mounting position | Any | Structural design | Piston Piston rod Cylinder barrel |
Position sensing | For proximity sensor | Symbol | 00992970 |
Operating pressure | 1bar 10bar | Mode of operation | Double-acting |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 4 - Particularly high corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
For use in the food industry | See supplementary material information | Ambient temperature | 0°C 80°C |
Theoretical force at 6 bar, retracting | 247N | Theoretical force at 6 bar, advancing | 295N |
Moving mass at 0?mm stroke | 73g | Additional moving mass per 10?mm stroke | 6.2g |
Basic weight with 0?mm stroke | 410g | Additional weight per 10?mm stroke | 11g |
Type of mounting | With accessories | Pneumatic connection | G1/8 |
Note on materials | RoHS-compliant | Cover material | High-alloy stainless steel |
Piston rod material | High-alloy stainless steel | Material of cylinder barrel | High-alloy stainless steel |
Manufacturer ID | 2159641 |
Specifications may be subject to change without notice
