Product Model

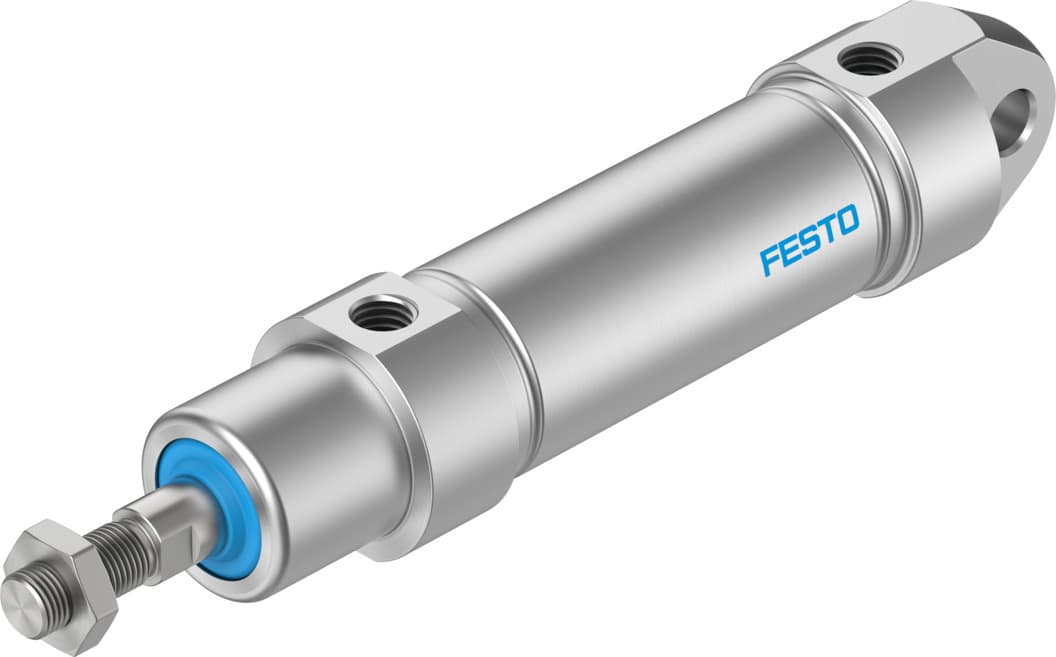

crdsnu-b-32-125-pps-a-mg-a1
Selling Points
- 1The CRDSNU-B-32-125-PPS-A-MG-A1 round cylinder boasts a very high corrosion resistance class (CRC 4), ensuring durability in harsh environments.
- 2Equipped with self-adjusting pneumatic end-position cushioning (PPS), this cylinder provides smooth operation and reduces wear and tear.
- 3The cylinder can be mounted in any position, offering flexibility in various industrial applications.
- 4With an operating pressure range of 1 to 10 bar, this cylinder delivers reliable performance in double-acting mode.
- 5Designed with food-safe materials and RoHS compliance, the CRDSNU-B-32-125-PPS-A-MG-A1 is suitable for use in food processing and meets environmental regulations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 125mm | Piston diameter | 32 mm |
Cushioning | Self-adjusting pneumatic end-position cushioning | Mounting position | Any |
Structural design | Piston Piston rod Cylinder barrel | Position sensing | For proximity sensor |
Symbol | 00992970 | Operating pressure | 1bar 10bar |
Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 4 - Particularly high corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L | For use in the food industry | See supplementary material information |
Ambient temperature | 0°C 80°C | Theoretical force at 6 bar, retracting | 415N |
Theoretical force at 6 bar, advancing | 483N | Moving mass at 0?mm stroke | 118g |
Additional moving mass per 10?mm stroke | 8.9g | Basic weight with 0?mm stroke | 670g |
Additional weight per 10?mm stroke | 15.3g | Type of mounting | With accessories |
Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
Cover material | High-alloy stainless steel | Piston rod material | High-alloy stainless steel |
Material of cylinder barrel | High-alloy stainless steel | Manufacturer ID | 2176405 |
Specifications may be subject to change without notice
