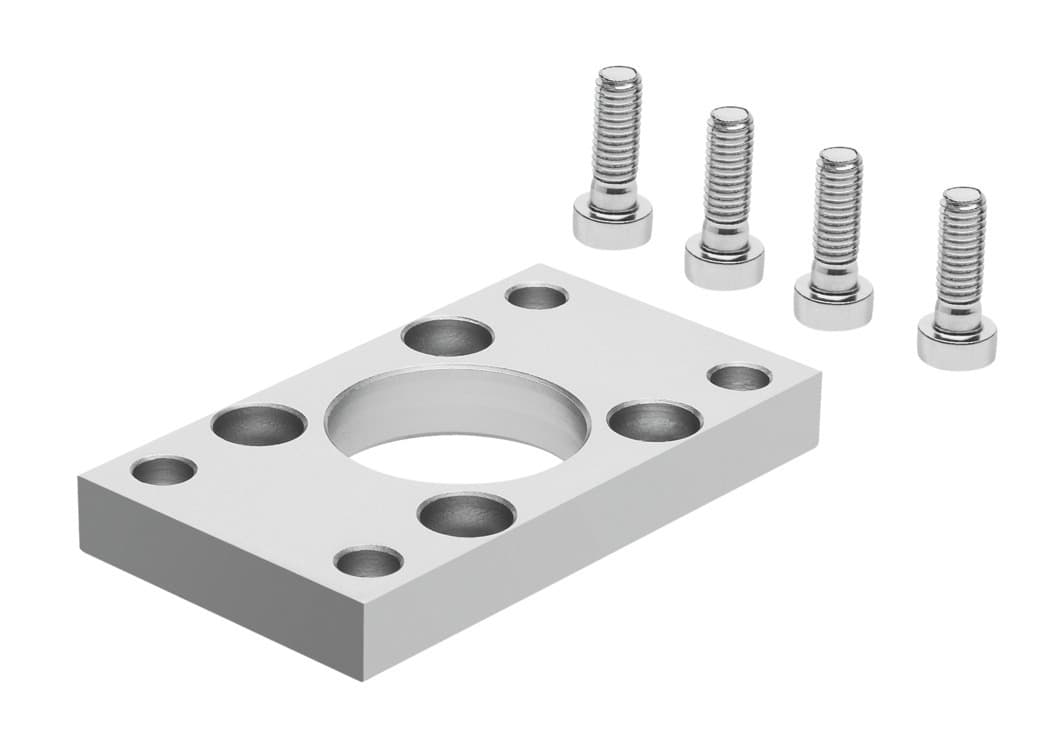

Product Model
crfng-40
Selling Points
- 1The CRFNG-40 features a high-alloy stainless steel material, ensuring very high corrosion resistance (CRC 4) for demanding industrial environments.
- 2Available in various mounting positions, including optional configurations, to suit different application needs.
- 3Conforms to ISO 15552, VDMA 24562, ISO 6431, NF E49 003.1, and UNI 10290 standards, ensuring compatibility with a wide range of industrial systems.
- 4Excluded from use in the production of Li-ion batteries due to metals with more than 5% by mass of copper, zinc, or nickel, except for nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors, and coils.
- 5Operates within an ambient temperature range of -40 °C to 150 °C, making it suitable for various industrial conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 40 | Mounting position | Any |
Conforms to standard | ISO 15552 (previously also VDMA 24562, ISO 6431, NF E49 003.1, UNI 10290) | Corrosion resistance class (CRC) | 4 - Particularly high corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L | Suitability for the production of Li-ion batteries | Metals with more than 5% by mass of copper, zinc or nickel by mass are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils |
Ambient temperature | -40°C 150°C | Product weight | 291g |
Mounting material | High-alloy stainless steel | Material of screws | High-alloy stainless steel |
Manufacturer ID | 161847 |
Specifications may be subject to change without notice
