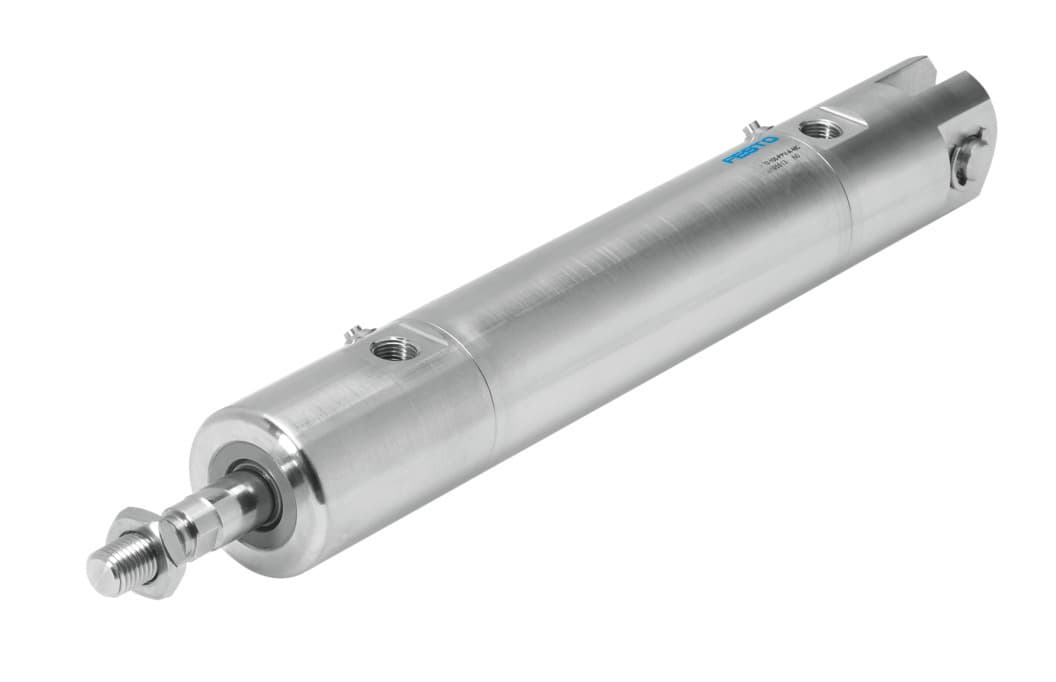

Product Model
crhd-32- -ppv-a-mc-s6
Selling Points
- 1The CRHD-32-PPV-A-MC-S6 features adjustable pneumatic cushioning at both ends, reducing kinetic energy and vibrations, and minimizing noise generation.
- 2Made from high-alloy stainless steel, this cylinder offers high corrosion resistance (CRC 3), ensuring durability in harsh industrial environments.
- 3Equipped with proximity sensors, this cylinder allows for precise position detection, making it suitable for applications requiring accurate positioning.
- 4The CRHD-32-PPV-A-MC-S6 features heat-resistant seals that can withstand temperatures up to 120°C, making it ideal for use in various temperature ranges.
- 5Available with different end caps (clevis, strap, and without mounting threads), this cylinder offers flexible mounting options to suit various application needs.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 10mm 500mm | Piston diameter | 32 mm |
Cushioning | Pneumatic cushioning, adjustable at both ends | Mounting position | Any |
Structural design | Piston Piston rod | Position sensing | For proximity sensor |
Symbol | 00991235 | Variants | Heat-resistant seals max. 120°C |
Operating pressure | 1bar 10bar | Mode of operation | Double-acting |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 3 - High corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
For use in the food industry | See supplementary material information | Ambient temperature | -20°C 120°C |
Cushioning length | 17mm | Theoretical force at 6 bar, retracting | 415N |
Theoretical force at 6 bar, advancing | 483N | Moving mass at 0?mm stroke | 106g |
Additional moving mass per 10?mm stroke | 9g | Basic weight with 0?mm stroke | 640g |
Additional weight per 10?mm stroke | 26g | Pneumatic connection | G1/8 |
Cover material | High-alloy stainless steel | Seals material | FPM |
Housing material | High-alloy stainless steel | Piston rod material | High-alloy stainless steel |
Manufacturer ID | 195549 |
