Product Model
crhd-32- -ppv-a-mq
Selling Points

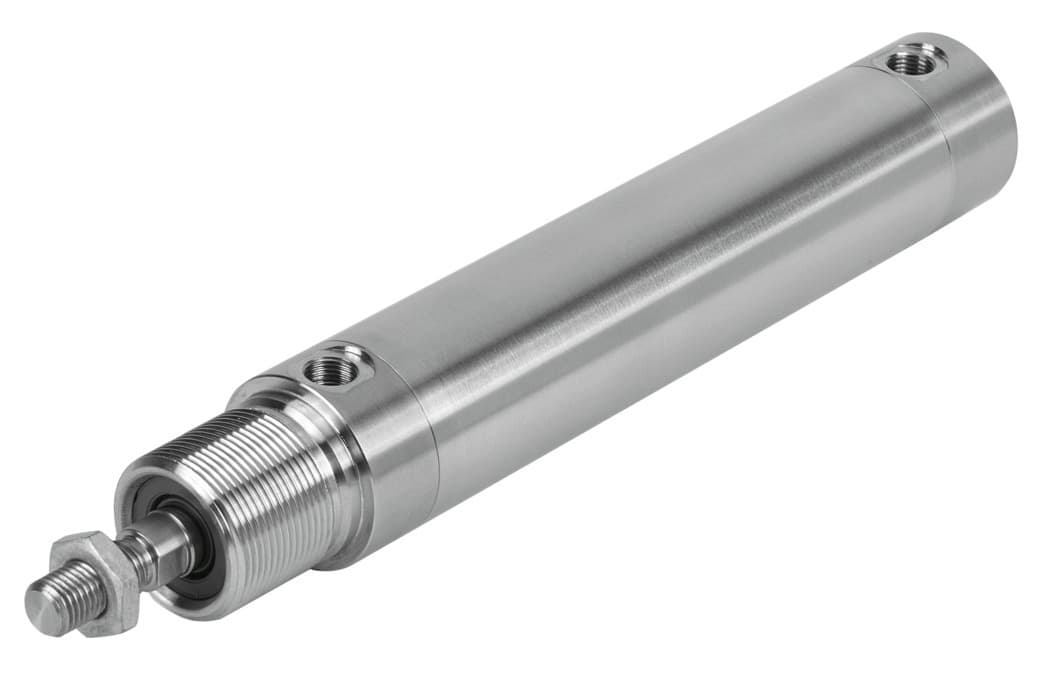

- 1The Festo CRHD-32-PPV-A-MQ is built with durable stainless steel, ensuring long-lasting performance in demanding industrial environments.
- 2Equipped with adjustable pneumatic cushioning, this cylinder reduces kinetic energy in end positions, minimizing vibrations and noise generation.
- 3The CRHD-32-PPV-A-MQ features proximity sensing, allowing for precise position detection using proximity switches for optimal control.
- 4Designed for use in a temperature range of -20°C to 120°C, this cylinder is heat-resistant and suitable for various industrial applications.
- 5Available with different end caps (MQ, MC, MS), the CRHD-32-PPV-A-MQ offers flexible mounting options to suit various installation requirements.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 10mm 500mm | Piston diameter | 32 mm |
Cushioning | Pneumatic cushioning, adjustable at both ends | Mounting position | Any |
Structural design | Piston Piston rod | Position sensing | For proximity sensor |
Symbol | 00991235 | Operating pressure | 1bar 10bar |
Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 3 - High corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L | For use in the food industry | See supplementary material information |
Ambient temperature | -20°C 80°C | Cushioning length | 17mm |
Theoretical force at 6 bar, retracting | 415N | Theoretical force at 6 bar, advancing | 483N |
Moving mass at 0?mm stroke | 106g | Additional moving mass per 10?mm stroke | 9g |
Basic weight with 0?mm stroke | 640g | Additional weight per 10?mm stroke | 26g |
Pneumatic connection | G1/8 | Cover material | High-alloy stainless steel |
Seals material | NBR TPE-U(PU) | Housing material | High-alloy stainless steel |
Piston rod material | High-alloy stainless steel | Manufacturer ID | 195507 |
Specifications may be subject to change without notice
