Product Model
crlmc-32
Selling Points

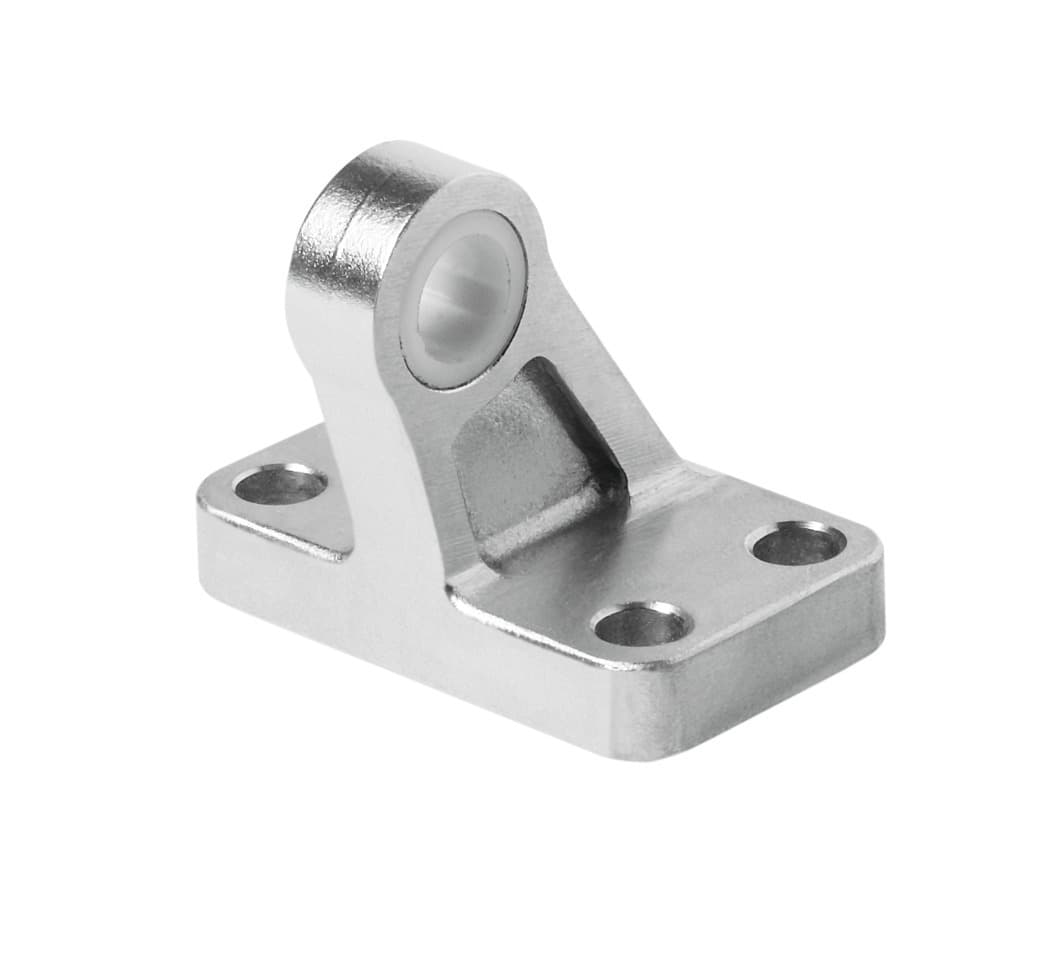

- 1The Festo CRLMC-32 Clevis Foot offers high corrosion resistance with a corrosion resistance class of CRC 4, making it suitable for harsh environments.
- 2This clevis foot is ISO 15552 compliant, ensuring compatibility with various industrial standards such as VDMA 24562, ISO 6431, NF E49 003.1, and UNI 10290.
- 3The optional mounting position allows for flexible installation, providing greater versatility in your pneumatic cylinder applications.
- 4Made from high-alloy steel with electropolished material mounting, the CRLMC-32 ensures durability and resistance to wear and tear.
- 5With a polymer material bearing, this clevis foot provides smooth operation and reduced friction, enhancing the overall performance of your pneumatic system.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 32 | Based on norm | ISO 15552 (previously also VDMA 24562, ISO 6431, NF E49 003.1, UNI 10290) |
Mounting position | Any | Corrosion resistance class (CRC) | 4 - Particularly high corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -40°C 80°C |
Product weight | 112g | Note on materials | RoHS-compliant |
Mounting material | Electropolished High-alloy steel | Material of bearing | Polymer |
Manufacturer ID | 197320 |
Specifications may be subject to change without notice
