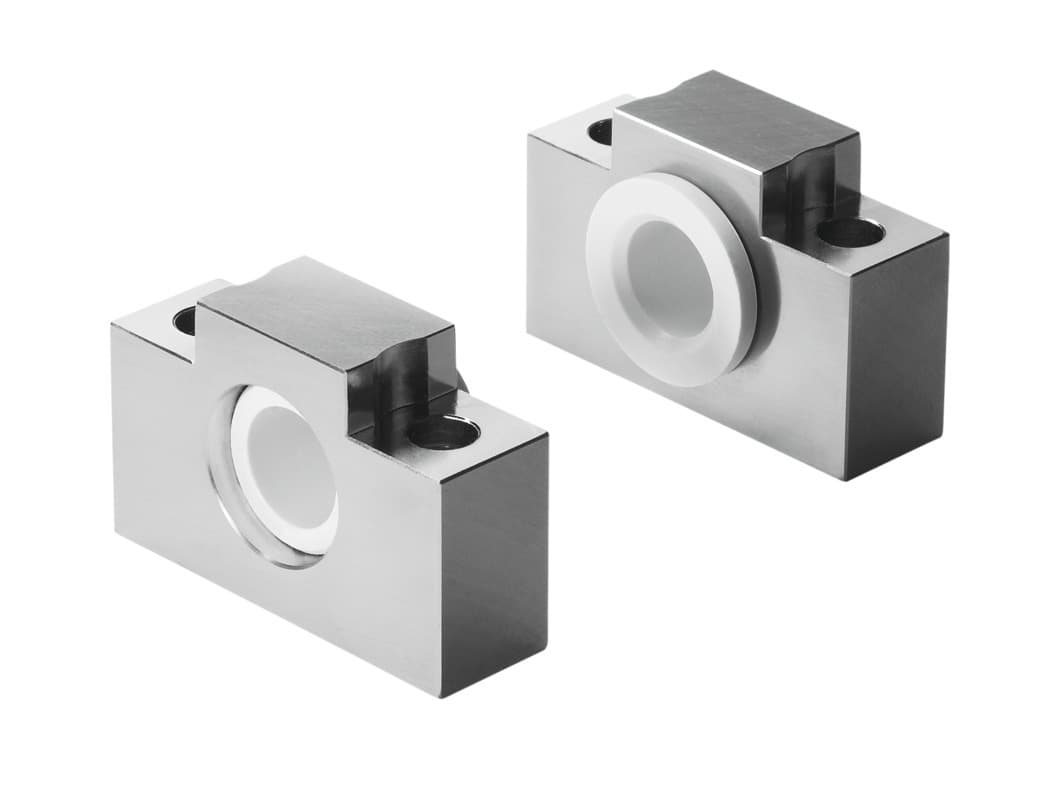

Product Model
crlnzg-63/80
Selling Points
- 1The CRLNZG-63/80 trunnion support features a corrosion resistance class of 4, ensuring it can withstand particularly severe corrosion stress.
- 2This product is based on the ISO 15552 standard, ensuring compatibility with a wide range of industrial systems.
- 3The trunnion support operates effectively within an ambient temperature range of -40 °C to 150 °C, making it versatile for various environments.
- 4Made from high-alloy stainless steel for the mounting material and plastic for the bearing material, this product is both durable and reliable.
- 5Although metals with more than 1% copper, zinc, or nickel are generally excluded, exceptions include nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors, and coils, making it suitable for Li-ion battery production under specific conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 63/80 | Based on norm | ISO 15552 |
Corrosion resistance class (CRC) | 4 - Particularly high corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils | Ambient temperature | -40°C 150°C |
Product weight | 435g | Note on materials | RoHS-compliant |
Mounting material | High-alloy stainless steel | Material of bearing | Polymer |
Manufacturer ID | 161876 |
Specifications may be subject to change without notice
