Product Model
crqs-12-10
Selling Points

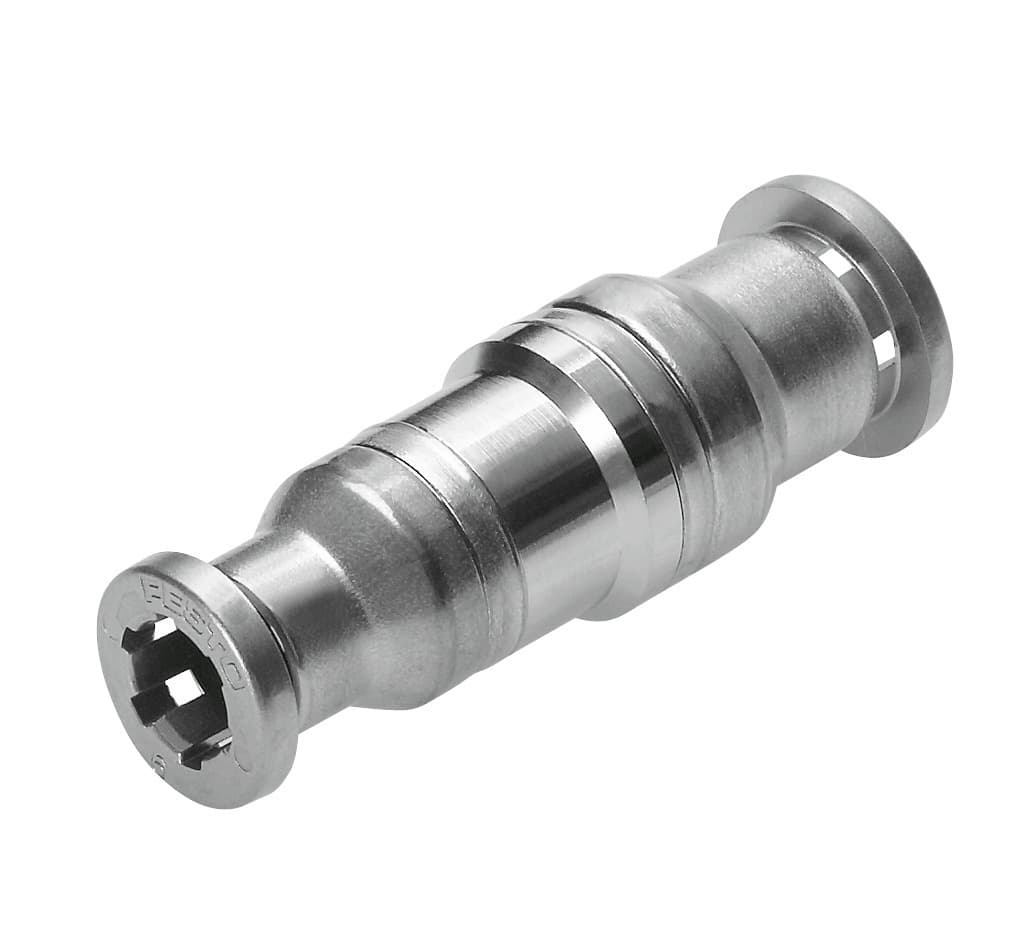

- 1The Festo CRQS-12-10 push-in connector is designed with a standard size of 6.6 mm, making it versatile for various pneumatic applications.
- 2This connector features a straight design and operates on a push-pull principle, ensuring easy installation and reliable performance.
- 3With a high corrosion resistance class of CRC 4, the CRQS-12-10 is suitable for use in harsh environments, including those with high chemical stress.
- 4The connector is compatible with both compressed air (ISO 8573-1:2010) and water (liquid, ice-free), making it a versatile choice for different operating mediums.
- 5The CRQS-12-10 is made from high-alloy stainless steel, ensuring durability and resistance to corrosion, and is suitable for use with food due to its high standards of cleanliness.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 6.6mm |
Mounting position | Any | Design | Straight design |
Pack size | 1 | Structural design | Push-pull principle |
Operating pressure for entire temperature range | -13.775psi 145psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 4 - Particularly high corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
For use in the food industry | See supplementary material information | Ambient temperature | -15°C 120°C |
Product weight | 35g | Usable connector cables | PFAN |
Pneumatic connection 1 | for pneumatic tubing outside diameter 12 mm | Pneumatic connection 2 | for pneumatic tubing outside diameter 10 mm |
Note on materials | RoHS-compliant | Housing material | High-alloy stainless steel |
Releasing ring material | High-alloy stainless steel | Material of tubing seal | FPM |
Material of tube retaining claw | High-alloy stainless steel | Thrust ring material | High-alloy stainless steel |
Manufacturer ID | 130654 |
Specifications may be subject to change without notice
