Product Model

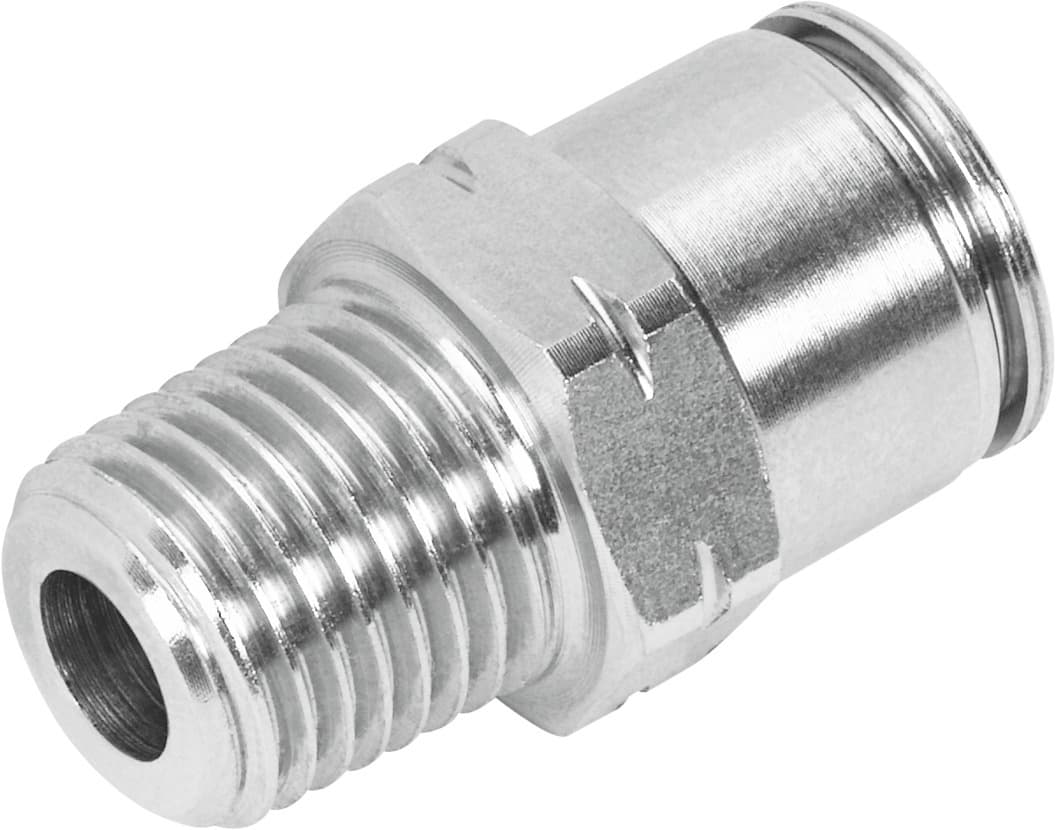

crqs-1/4-3/8-u
Selling Points
- 1Designed with a CRC 4 rating, ensuring very high corrosion stress resistance.
- 2Nominal size of 0.256 inches, suitable for various applications.
- 3Compatible with compressed air up to 203 psi across a wide temperature range.
- 4Easy to install and use with a push-pull design.
- 5Made from high-alloy stainless steel, conforming to RoHS standards for environmental safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 6.502mm |
Mounting position | Any | Design | Straight design |
Pack size | 1 | Structural design | Push-pull principle |
Operating pressure for entire temperature range | -13.775psi 203psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
Corrosion resistance class (CRC) | 4 - Particularly high corrosion stress | LABS (PWIS) conformity | VDMA24364 zone III |
For use in the food industry | See supplementary material information | Ambient temperature | -20°C 150°C |
Max. tightening torque | 16Nm | Product weight | 25.402g |
Usable connector cables | PFAN | Type of mounting | External hexagon 21/32 |
Pneumatic connection 1 | Male thread 1/4 NPTF | Pneumatic connection 2 | for pneumatic tubing outside diameter 3/8" |
Ambient temperature Fahrenheit | -4°F 302°F | Note on materials | RoHS-compliant |
Housing material | High-alloy stainless steel | Releasing ring material | High-alloy stainless steel |
Material of tubing seal | FPM | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 565322 |
Specifications may be subject to change without notice
