Product Model

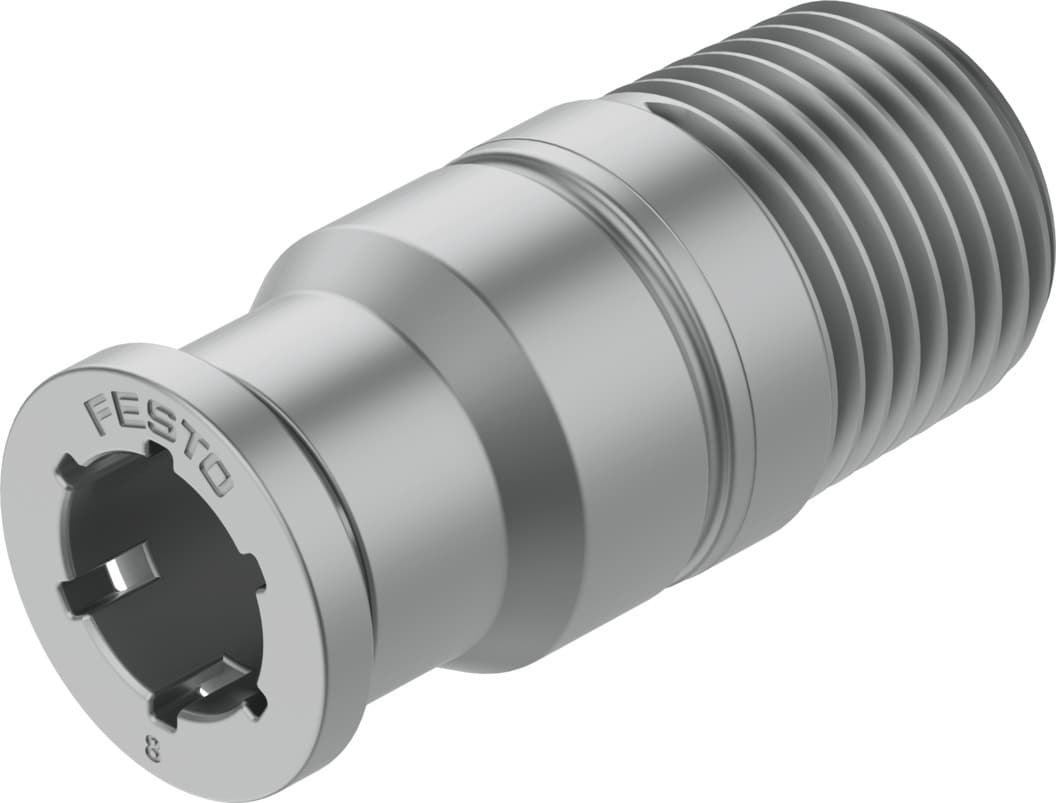

crqs-1/4-8-i
Selling Points
- 1The CRQS-1/4-8-I is made from high-alloy stainless steel, ensuring it can withstand extreme corrosive conditions and outdoor exposure.
- 2Featuring a push-pull principle, this fitting is designed for quick and effortless connection to pneumatic tubing, reducing installation time.
- 3Available at a competitive standard unit price of SGD 66.25, making it an economical choice for your pneumatic system needs.
- 4Compatible with compressed air as per ISO 8573-1:2010 and water as per manufacturer's declaration, ensuring broad application versatility.
- 5With dimensions of 5.8 mm nominal size, 11 mm L1, 31.6 mm L2, and a weight of 15 grams, this fitting is precision-engineered for optimal performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 5.8mm |
Mounting position | Any | Design | Straight design |
Pack size | 1 | Structural design | Push-pull principle |
Operating pressure for entire temperature range | -13.775psi 145psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 4 - Particularly high corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
For use in the food industry | See supplementary material information | Ambient temperature | -15°C 120°C |
Product weight | 15g | Usable connector cables | PFAN |
Type of mounting | Internal hexagon, AF 6 | Pneumatic connection 1 | External thread R1/4 |
Pneumatic connection 2 | for pneumatic tubing outside diameter 8 mm | Material of screwed plug | High-alloy stainless steel |
Note on materials | RoHS-compliant | Housing material | High-alloy stainless steel |
Releasing ring material | High-alloy stainless steel | Material of tubing seal | FPM |
Material of tube retaining claw | High-alloy stainless steel | Thrust ring material | High-alloy stainless steel |
Manufacturer ID | 132332 |
Specifications may be subject to change without notice
