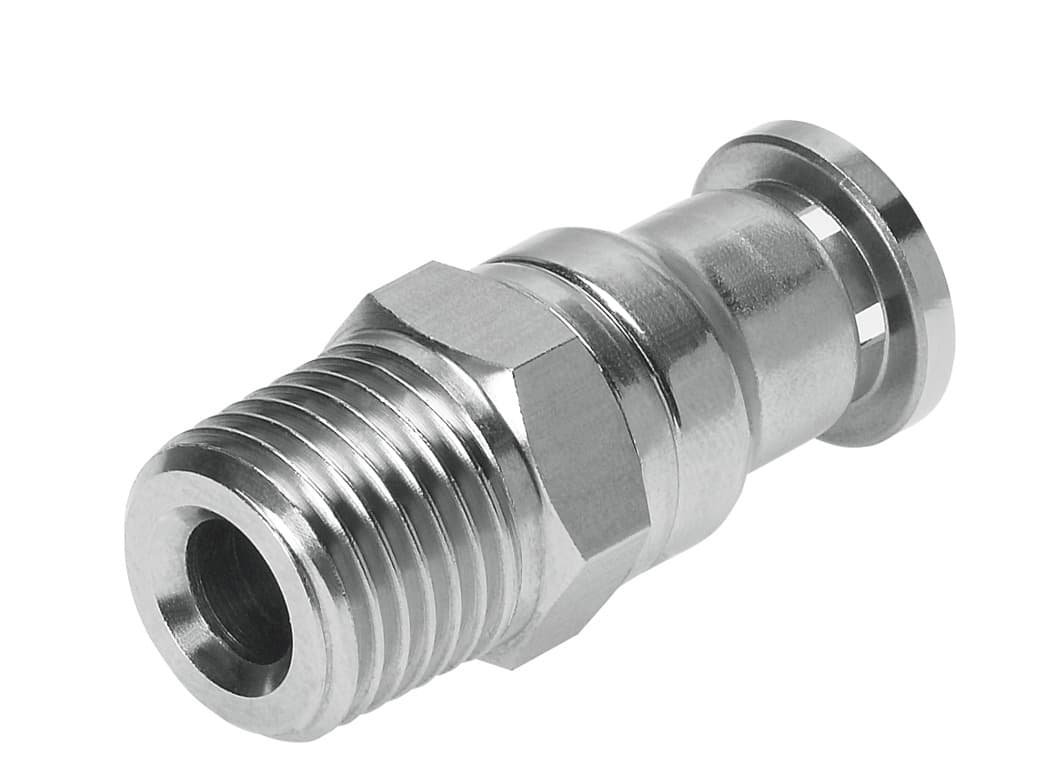

Product Model
crqs-3/8-10
Selling Points
- 1The CRQS-3/8-10 features a high-alloy stainless steel construction, ensuring very high corrosion resistance (CRC 4) and compliance with VDMA24364-B1/B2-L standards.
- 2This push-in fitting offers optional mounting positions, allowing for flexibility in installation and use with various pneumatic systems.
- 3It operates within a comprehensive temperature range of -15°C to 120°C and supports pressures from -0.095 MPa to 1 MPa (or -13.775 psi to 145 psi).
- 4The CRQS-3/8-10 is suitable for use with food and meets LABS (PWIS) conformity, making it ideal for cleanroom environments.
- 5Constructed with high-alloy stainless steel, this fitting includes components such as a screwed plug, release ring, tubing seal, clamp component, and thrust ring, all made from high-alloy stainless steel for durability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 6mm |
Mounting position | Any | Design | Straight design |
Pack size | 1 | Structural design | Push-pull principle |
Operating pressure for entire temperature range | -13.775psi 145psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 4 - Particularly high corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
For use in the food industry | See supplementary material information | Ambient temperature | -15°C 120°C |
Product weight | 29g | Usable connector cables | PFAN |
Type of mounting | External hexagon, AF 17 | Pneumatic connection 1 | External thread R3/8 |
Pneumatic connection 2 | for pneumatic tubing outside diameter 10 mm | Material of screwed plug | High-alloy stainless steel |
Note on materials | RoHS-compliant | Housing material | High-alloy stainless steel |
Releasing ring material | High-alloy stainless steel | Material of tubing seal | FPM |
Material of tube retaining claw | High-alloy stainless steel | Thrust ring material | High-alloy stainless steel |
Manufacturer ID | 162866 |
