Product Model

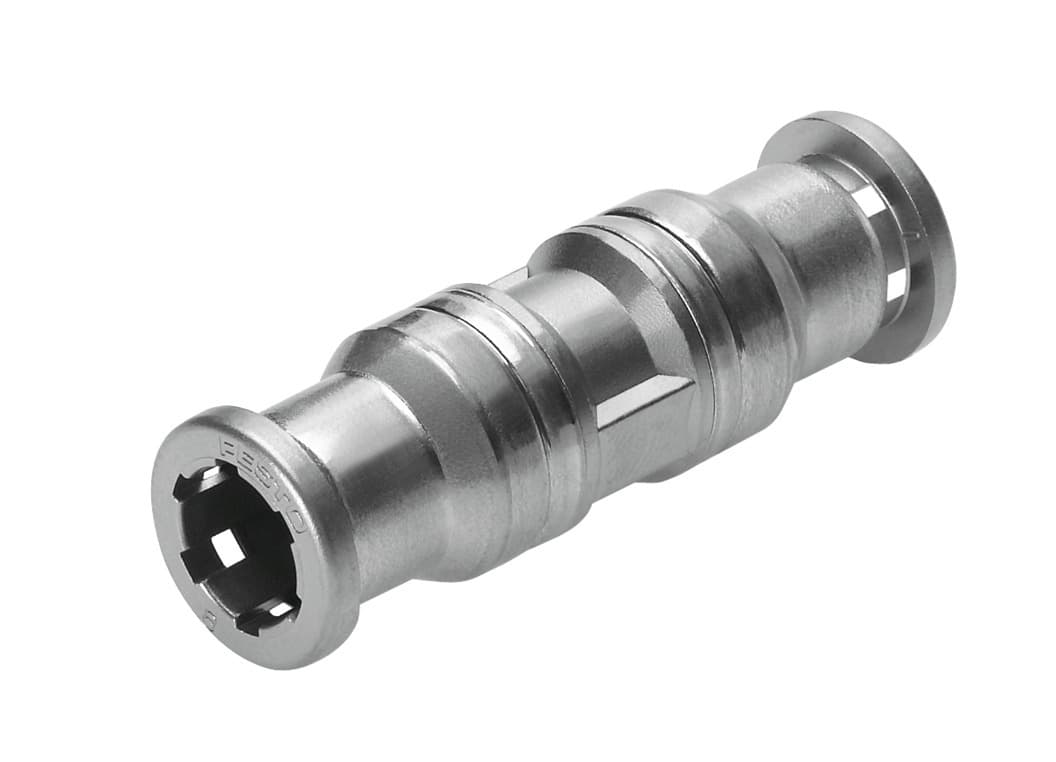

crqs-6
Selling Points
- 1The CRQS-6 is made from high-alloy stainless steel, ensuring durability and resistance to corrosion, making it ideal for demanding applications.
- 2Featuring a push-pull principle, the CRQS-6 offers a straightforward and efficient installation process, reducing setup time and effort.
- 3This connector operates within a wide temperature range (-15°C to 120°C) and supports compressed air to ISO 8573-1:2010, as well as water up to 0.6 MPa at 50°C.
- 4The CRQS-6 meets VDMA24364-B1/B2-L standards and is suitable for use with food, ensuring compliance with stringent industry regulations.
- 5With a straight design and a nominal size of 3.7 mm, the CRQS-6 provides a robust and reliable connection for pneumatic systems, minimizing the risk of leaks and failures.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 3.7mm |
Mounting position | Any | Design | Straight design |
Pack size | 1 | Structural design | Push-pull principle |
Operating pressure for entire temperature range | -13.775psi 145psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 4 - Particularly high corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
For use in the food industry | See supplementary material information | Ambient temperature | -15°C 120°C |
Product weight | 14g | Usable connector cables | PFAN |
Pneumatic connection 1 | For pneumatic tubing outside diameter 6 mm | Pneumatic connection 2 | for pneumatic tubing outside diameter 6 mm |
Note on materials | RoHS-compliant | Housing material | High-alloy stainless steel |
Releasing ring material | High-alloy stainless steel | Material of tubing seal | FPM |
Material of tube retaining claw | High-alloy stainless steel | Thrust ring material | High-alloy stainless steel |
Manufacturer ID | 130646 |
Specifications may be subject to change without notice
