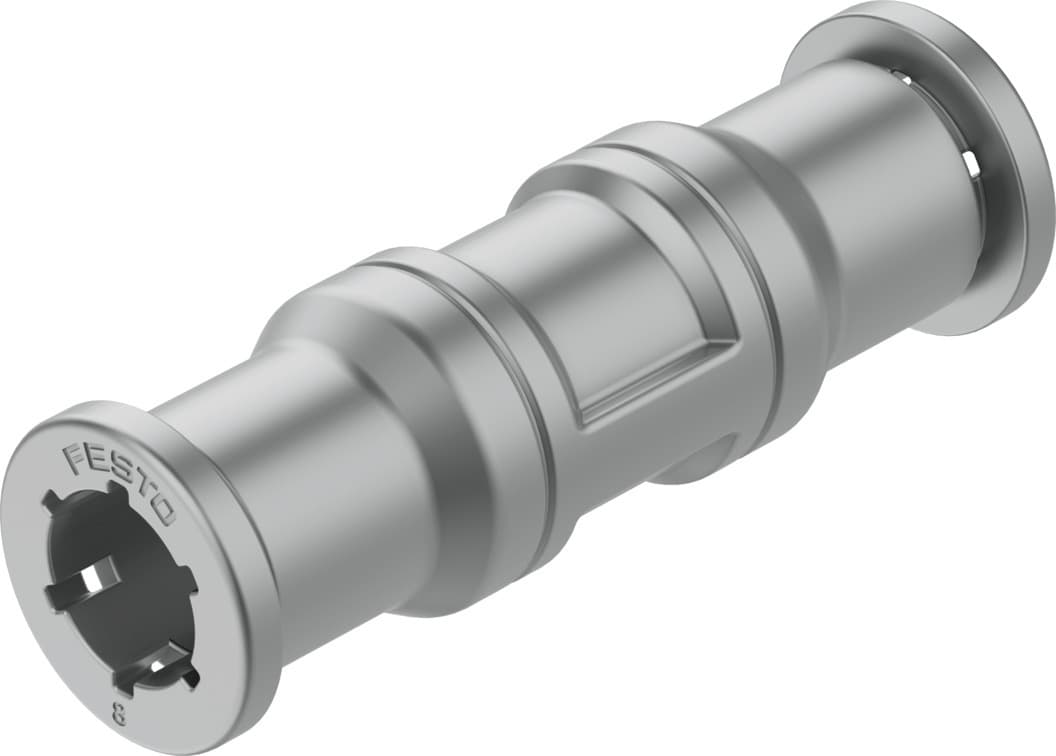

Product Model
crqs-8
Selling Points
- 1The CRQS-8 is designed to handle operating pressures up to 10 bar, making it suitable for demanding pneumatic systems.
- 2With a corrosion resistance class of CRC 4, this connector ensures long-lasting performance in harsh environments.
- 3The CRQS-8 is suitable for use with food, adhering to high standards of hygiene and safety.
- 4The connector features an optional mounting position, allowing for flexible installation in various applications.
- 5Constructed from high-alloy stainless steel, the CRQS-8 offers exceptional durability and resistance to corrosion.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 5.8mm |
Mounting position | Any | Design | Straight design |
Pack size | 1 | Structural design | Push-pull principle |
Operating pressure for entire temperature range | -13.775psi 145psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 4 - Particularly high corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
For use in the food industry | See supplementary material information | Ambient temperature | -15°C 120°C |
Product weight | 18g | Usable connector cables | PFAN |
Pneumatic connection 1 | for pneumatic tubing outside diameter 8 mm | Pneumatic connection 2 | for pneumatic tubing outside diameter 8 mm |
Note on materials | RoHS-compliant | Housing material | High-alloy stainless steel |
Releasing ring material | High-alloy stainless steel | Material of tubing seal | FPM |
Material of tube retaining claw | High-alloy stainless steel | Thrust ring material | High-alloy stainless steel |
Manufacturer ID | 130647 |
Specifications may be subject to change without notice
