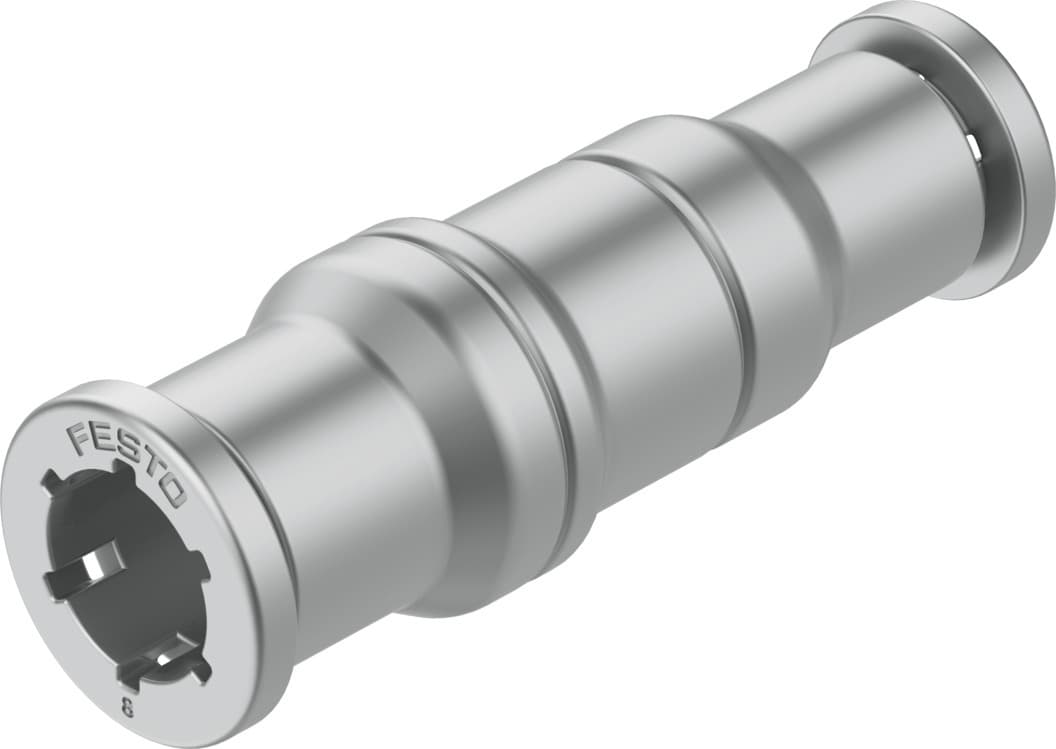

Festo CRQS-8-6 Pneumatic Fitting - High-Alloy Stainless Steel

Selling Points

1The CRQS-8-6 pneumatic fitting is made from high-alloy stainless steel, ensuring maximum resistance to corrosion and aggressive chemicals.
2This fitting features a push-in connector design, allowing for easy and secure connections to 8mm and 6mm pneumatic tubing.
3The CRQS-8-6 can operate within a wide pressure range of -0.95bar to +10bar, making it suitable for various pneumatic applications.
4The fitting is food-safe and compliant with FDA standards, making it suitable for use in food processing and handling environments.
5The CRQS-8-6 is compatible with compressed air and water, and it can also operate with oil lubrication, enhancing its versatility in different industrial settings.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	Standard	Nominal width	3.7mm
Mounting position	Any	Design	Straight design
Pack size	1	Structural design	Push-pull principle
Operating pressure for entire temperature range	-13.775psi 145psi	Information on operating pressure	Water: max. 0.6 MPa at max. 50 °C
Operating medium	Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)	Information on operating and pilot media	Operation with oil lubrication possible
Corrosion resistance class (CRC)	4 - Particularly high corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
For use in the food industry	See supplementary material information	Ambient temperature	-15°C 120°C
Product weight	15g	Usable connector cables	PFAN
Pneumatic connection 1	for pneumatic tubing outside diameter 8 mm	Pneumatic connection 2	for pneumatic tubing outside diameter 6 mm
Note on materials	RoHS-compliant	Housing material	High-alloy stainless steel
Releasing ring material	High-alloy stainless steel	Material of tubing seal	FPM
Material of tube retaining claw	High-alloy stainless steel	Thrust ring material	High-alloy stainless steel
Manufacturer ID	130652

Specifications may be subject to change without notice
