Product Model
crqsl-12
Selling Points

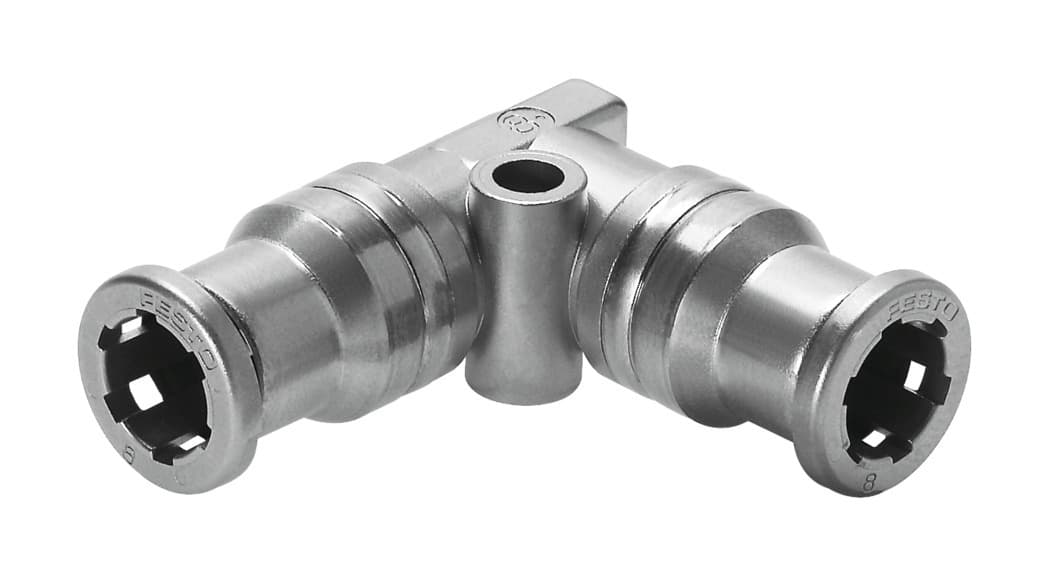

- 1The Festo CRQSL-1/2-12 push-in L-fitting offers a nominal size of 7.9 mm, ensuring precise and reliable pneumatic connections in various applications.
- 2This fitting features an L-shape design with a push-pull principle, making it easy to install and operate, even in tight spaces.
- 3With a corrosion resistance class of CRC 4 (Very high corrosion stress), the CRQSL-1/2-12 is suitable for use with food and other corrosive environments.
- 4The fitting is designed to operate within a wide temperature range of -15°C to 120°C, making it versatile for various industrial applications.
- 5Constructed from high-alloy stainless steel, the CRQSL-1/2-12 ensures durability and resistance to chemicals, ensuring long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 7.8mm |
Mounting position | Any | Design | L-shape |
Pack size | 1 | Structural design | Push-pull principle |
Operating pressure for entire temperature range | -13.775psi 145psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 4 - Particularly high corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
For use in the food industry | See supplementary material information | Ambient temperature | -15°C 120°C |
Product weight | 62g | Usable connector cables | PFAN |
Pneumatic connection 1 | for pneumatic tubing outside diameter 12 mm | Pneumatic connection 2 | for pneumatic tubing outside diameter 12 mm |
Note on materials | RoHS-compliant | Housing material | High-alloy stainless steel |
Releasing ring material | High-alloy stainless steel | Material of tubing seal | FPM |
Material of tube retaining claw | High-alloy stainless steel | Thrust ring material | High-alloy stainless steel |
Manufacturer ID | 130666 |
Specifications may be subject to change without notice
