Product Model

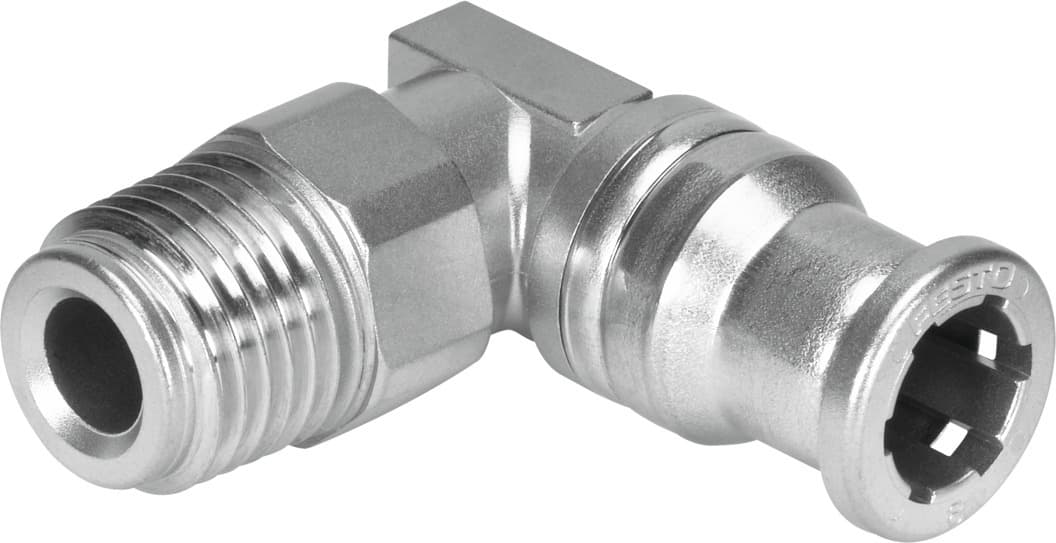

crqsl-1/4-6
Selling Points
- 1The CRQSL-1/4-6 features a high-alloy stainless steel construction, ensuring maximum corrosion and chemical resistance in demanding environments.
- 2This push-in L-fitting offers optional mounting positions, allowing for flexible installation in various applications.
- 3The CRQSL-1/4-6 is designed with a push-pull principle, making it easy to assemble and disassemble without tools.
- 4It operates within a wide pressure range of -0.095 MPa to 1 MPa (-13.775 psi to 145 psi) and supports both compressed air and water as operating mediums.
- 5The CRQSL-1/4-6 is suitable for use with food and meets VDMA24364-B1/B2-L standards, making it ideal for applications in the food industry and other sectors requiring high hygiene standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 3.6mm |
Mounting position | Any | Design | L-shape |
Pack size | 1 | Structural design | Push-pull principle |
Operating pressure for entire temperature range | -13.775psi 145psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 4 - Particularly high corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
For use in the food industry | See supplementary material information | Ambient temperature | -15°C 120°C |
Product weight | 26g | Usable connector cables | PFAN |
Type of mounting | External hexagon, AF 14 | Pneumatic connection 1 | External thread R1/4 |
Pneumatic connection 2 | for pneumatic tubing outside diameter 6 mm | Material of screwed plug | High-alloy stainless steel |
Note on materials | RoHS-compliant | Housing material | High-alloy stainless steel |
Releasing ring material | High-alloy stainless steel | Material of tubing seal | FPM |
Material of tube retaining claw | High-alloy stainless steel | Thrust ring material | High-alloy stainless steel |
Manufacturer ID | 132599 |
Specifications may be subject to change without notice
