Product Model
crqsl-1/8-4
Selling Points

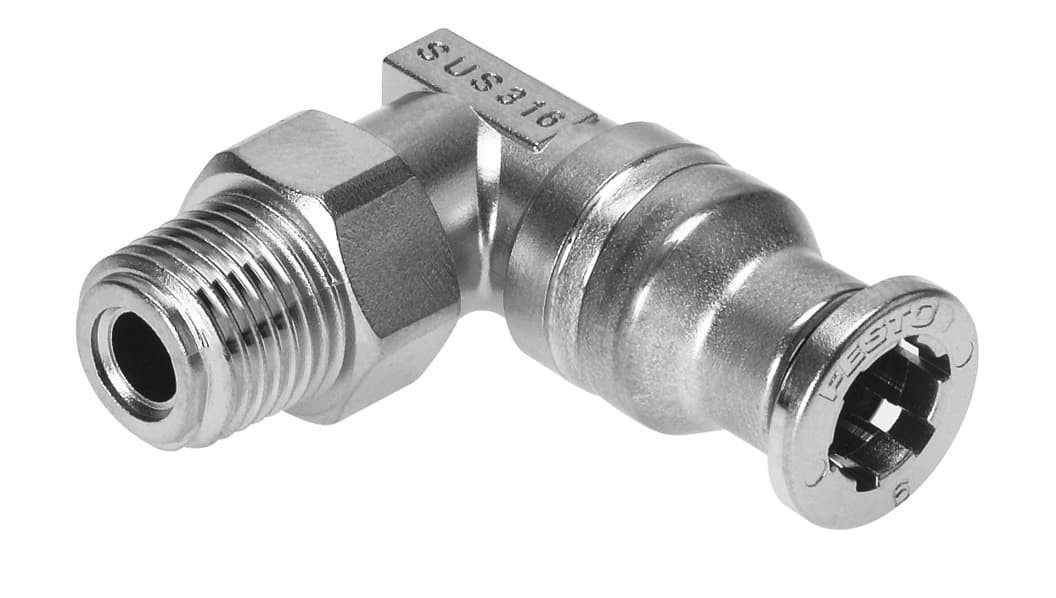

- 1The CRQSL-1/8-4 push-in L-fitting is made from high-alloy stainless steel, ensuring maximum corrosion and chemical resistance, making it ideal for harsh environments.
- 2This fitting features an L-shape design with a push-pull principle, allowing for easy assembly and disassembly. It can be mounted in any position, providing flexibility in installation.
- 3The CRQSL-1/8-4 operates within a wide temperature range of -15°C to 120°C and supports operating pressures from -0.095 MPa to 1 MPa, making it suitable for various pneumatic applications.
- 4The fitting is designed to be food-safe and complies with VDMA24364-B1/B2-L standards, ensuring it meets stringent requirements for use in the food industry.
- 5With a product weight of 14 grams and a robust construction, the CRQSL-1/8-4 push-in L-fitting is durable and reliable, providing long-lasting performance in demanding environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 2.2mm |
Mounting position | Any | Design | L-shape |
Pack size | 1 | Structural design | Push-pull principle |
Operating pressure for entire temperature range | -13.775psi 145psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 4 - Particularly high corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
For use in the food industry | See supplementary material information | Ambient temperature | -15°C 120°C |
Product weight | 14g | Usable connector cables | PFAN |
Type of mounting | External hexagon, AF 10 | Pneumatic connection 1 | External thread R1/8 |
Pneumatic connection 2 | for pneumatic tubing outside diameter 4 mm | Material of screwed plug | High-alloy stainless steel |
Note on materials | RoHS-compliant | Housing material | High-alloy stainless steel |
Releasing ring material | High-alloy stainless steel | Material of tubing seal | FPM |
Material of tube retaining claw | High-alloy stainless steel | Thrust ring material | High-alloy stainless steel |
Manufacturer ID | 132598 |
