Product Model

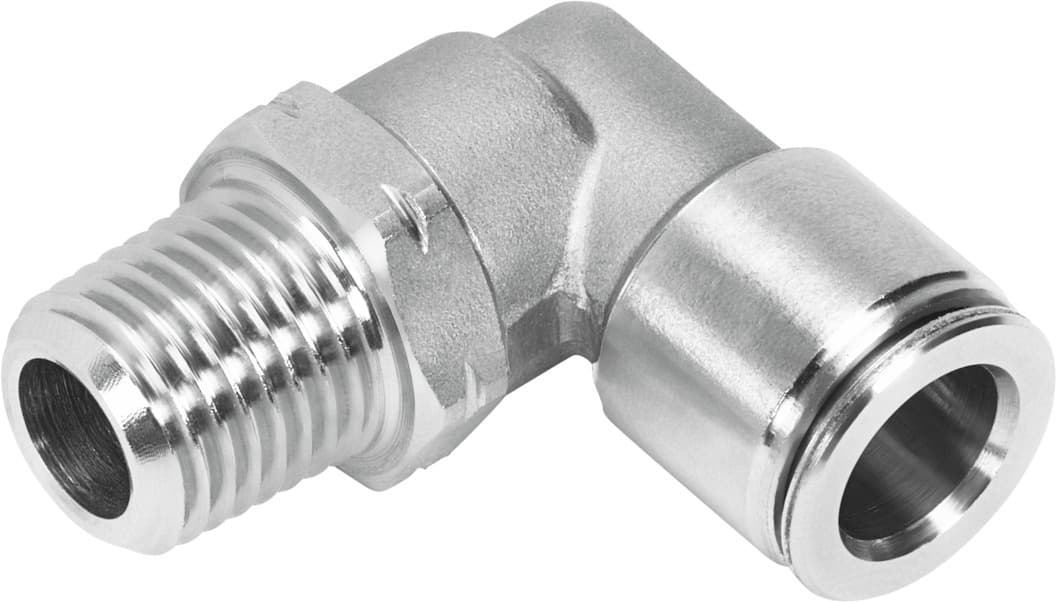

crqsl-3/8-3/8-u
Selling Points
- 1Designed with a corrosion resistance class (CRC) of 4, ensuring durability in harsh environments.
- 2Suitable for use in the food industry and other demanding applications.
- 3Operates effectively between -20 °C to 150 °C, making it versatile for various temperature conditions.
- 4Push-in design with a maximum tightening torque of 13.3 ft-lbf for easy and secure installation.
- 5Constructed from high-alloy stainless steel for long-lasting performance and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 8.509mm |
Mounting position | Any | Design | L-shape |
Pack size | 1 | Structural design | Push-pull principle |
Operating pressure for entire temperature range | -13.775psi 203psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
Corrosion resistance class (CRC) | 4 - Particularly high corrosion stress | LABS (PWIS) conformity | VDMA24364 zone III |
For use in the food industry | See supplementary material information | Ambient temperature | -20°C 150°C |
Max. tightening torque | 18Nm | Product weight | 43.007g |
Usable connector cables | PFAN | Type of mounting | External hexagon 45/64 |
Pneumatic connection 1 | Male thread 3/8 NPTF | Pneumatic connection 2 | for pneumatic tubing outside diameter 3/8" |
Ambient temperature Fahrenheit | -4°F 302°F | Note on materials | RoHS-compliant |
Housing material | High-alloy stainless steel | Releasing ring material | High-alloy stainless steel |
Material of tubing seal | FPM | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 565331 |
Specifications may be subject to change without notice
