Product Model

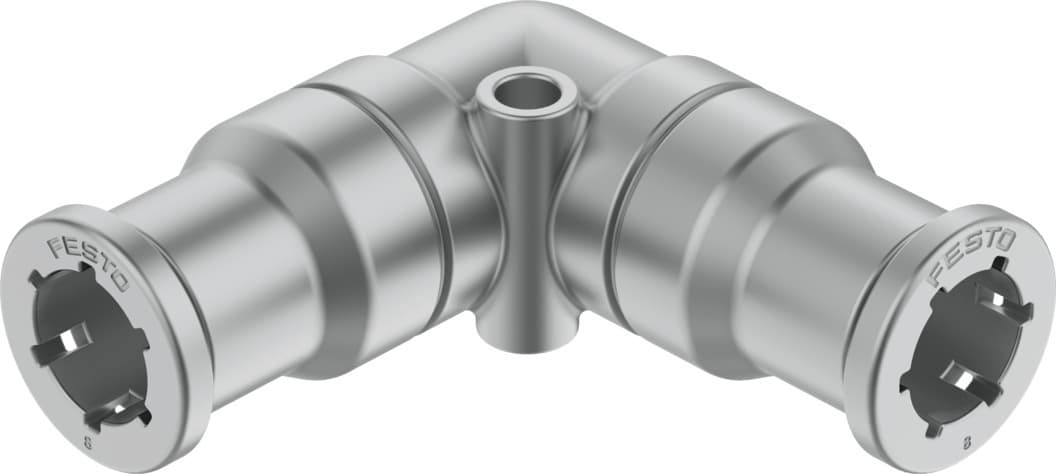

crqsl-8
Selling Points
- 1The CRQSL-8 is made from high-alloy stainless steel, ensuring maximum corrosion and chemical resistance, making it suitable for use in harsh environments and the food industry.
- 2This push-in L-connector offers a 360° orientable design with a male thread, allowing for flexible mounting positions and easy integration into various pneumatic systems.
- 3The CRQSL-8 operates within a broad temperature range of -15°C to 120°C and supports pressures from -0.095 MPa to 1 MPa, ensuring reliable performance in diverse conditions.
- 4The product is suitable for use in the food industry and complies with ISO 8573-1:2010 for compressed air and VDMA24364-B1/B2-L for high corrosion stress, making it a safe choice for critical applications.
- 5Weighing only 27 grams, the CRQSL-8 is a compact and lightweight solution that can be easily integrated into pneumatic systems without adding significant weight or bulk.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 5.1mm |
Mounting position | Any | Design | L-shape |
Pack size | 1 | Structural design | Push-pull principle |
Operating pressure for entire temperature range | -13.775psi 145psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 4 - Particularly high corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
For use in the food industry | See supplementary material information | Ambient temperature | -15°C 120°C |
Product weight | 27g | Usable connector cables | PFAN |
Pneumatic connection 1 | for pneumatic tubing outside diameter 8 mm | Pneumatic connection 2 | for pneumatic tubing outside diameter 8 mm |
Note on materials | RoHS-compliant | Housing material | High-alloy stainless steel |
Releasing ring material | High-alloy stainless steel | Material of tubing seal | FPM |
Material of tube retaining claw | High-alloy stainless steel | Thrust ring material | High-alloy stainless steel |
Manufacturer ID | 130664 |
Specifications may be subject to change without notice
