Product Model

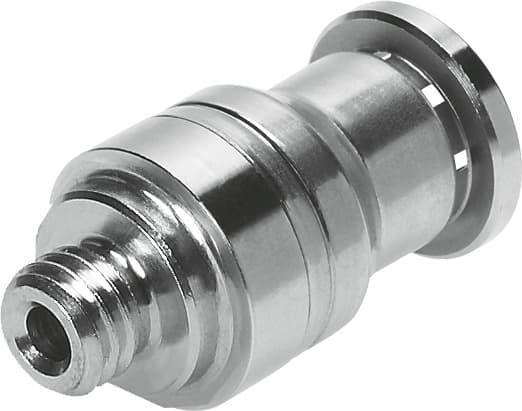

crqs-m5-4-i
Selling Points
- 1High-Pressure Capability: The CRQS-M5-4-I push-in fitting supports operating pressures from -0.95 to 10 bar, making it suitable for various industrial applications.
- 2Corrosion Resistance: Constructed from high-alloy stainless steel, this fitting offers a corrosion resistance class of 4, ensuring durability in harsh environments.
- 3Versatile Mounting: The CRQS-M5-4-I features a straight design and can be mounted in any position, providing flexibility in installation.
- 4Food Compatibility: Suitable for use with food, this fitting meets the necessary standards for food processing applications, ensuring cleanliness and safety.
- 5Easy Installation: With a nominal tightening torque of 1.33 Nm and a tolerance of ±20%, the CRQS-M5-4-I is easy to install and secure, reducing the risk of leaks or misalignment.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 2mm |
Type of seal on screwed plug | Sealing ring | Mounting position | Any |
Design | Straight design | Pack size | 1 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 145psi |
Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 4 - Particularly high corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | For use in the food industry | See supplementary material information |
Ambient temperature | -15°C 120°C | Nominal tightening torque | 1.33Nm |
Tolerance for nominal tightening torque | ± 20% | Product weight | 5g |
Usable connector cables | PFAN | Type of mounting | Internal hexagon, AF 2 |
Pneumatic connection 1 | External thread M5 | Pneumatic connection 2 | for pneumatic tubing outside diameter 4 mm |
Material of screwed plug | High-alloy stainless steel | Note on materials | RoHS-compliant |
Housing material | High-alloy stainless steel | Material of threaded seal | FPM High-alloy stainless steel |
Releasing ring material | High-alloy stainless steel | Material of tubing seal | FPM |
Material of tube retaining claw | High-alloy stainless steel | Thrust ring material | High-alloy stainless steel |
Manufacturer ID | 132328 |
Specifications may be subject to change without notice
