Product Model
crqs-m5-6
Selling Points

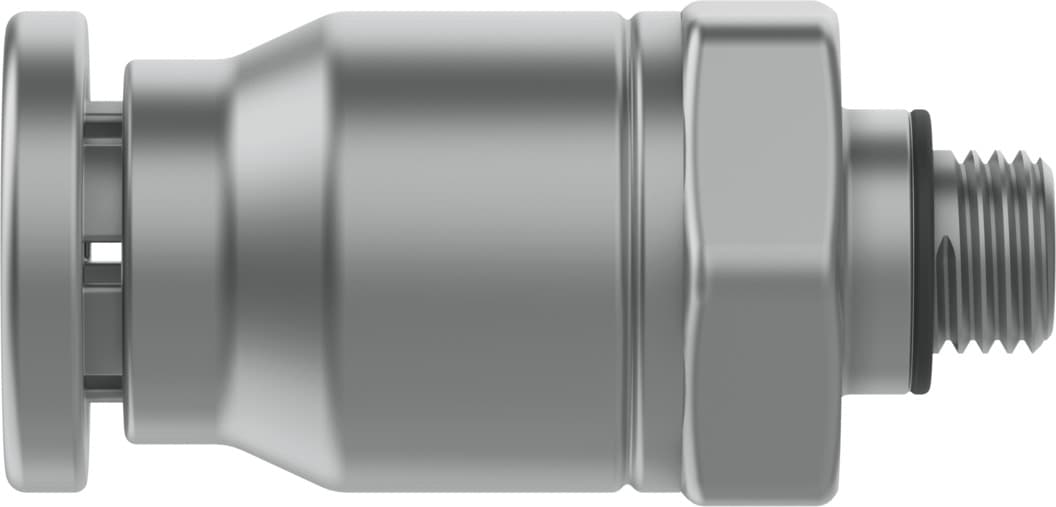

- 1The CRQS-M5-6-I push-in fitting is made from high-alloy stainless steel, ensuring maximum corrosion resistance and durability in various industrial environments.
- 2Equipped with an external thread M5 and internal hexagon mounting, this fitting provides a secure and reliable pneumatic connection for tubing outside diameters of 6 mm.
- 3Designed to operate within a wide pressure range of -0.095 MPa to 1 MPa (-13.775 psi to 145 psi), making it versatile for various pneumatic applications.
- 4Compliant with VDMA24364-B1/B2-L and suitable for use in the food industry, this fitting ensures safety and reliability in critical environments.
- 5Featuring a push-pull principle design and lubricated operation capability, the CRQS-M5-6-I push-in fitting simplifies installation and maintenance processes.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 2mm |
Type of seal on screwed plug | Sealing ring | Mounting position | Any |
Design | Straight design | Pack size | 1 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 145psi |
Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 4 - Particularly high corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | For use in the food industry | See supplementary material information |
Ambient temperature | -15°C 120°C | Nominal tightening torque | 1.33Nm |
Tolerance for nominal tightening torque | ± 20% | Product weight | 8.4g |
Usable connector cables | PFAN | Type of mounting | External hexagon, AF 12 |
Pneumatic connection 1 | External thread M5 | Pneumatic connection 2 | for pneumatic tubing outside diameter 6 mm |
Material of screwed plug | High-alloy stainless steel | Note on materials | RoHS-compliant |
Housing material | High-alloy stainless steel | Material of threaded seal | FPM High-alloy stainless steel |
Releasing ring material | High-alloy stainless steel | Material of tubing seal | FPM |
Material of tube retaining claw | High-alloy stainless steel | Thrust ring material | High-alloy stainless steel |
Manufacturer ID | 162861 |
Specifications may be subject to change without notice
