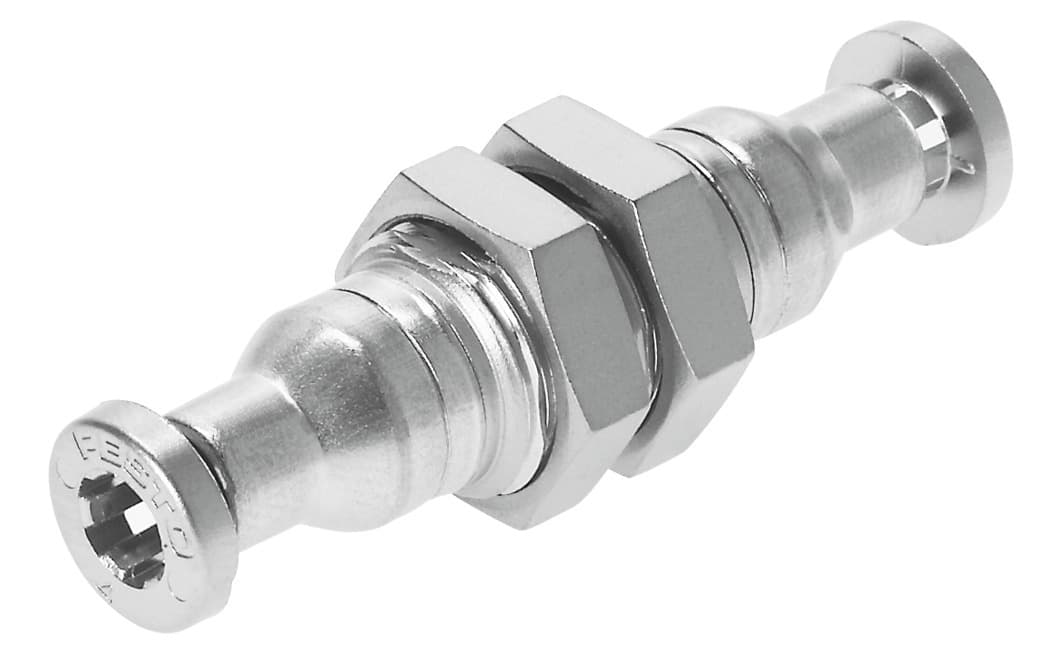

Product Model
crqss-12
Selling Points
- 1The CRQSS-12 features a high corrosion resistance class (CRC 4), ensuring durability in harsh environments.
- 2Designed with a push-pull principle, this connector provides easy and secure connection and disconnection.
- 3Suitable for use in the food industry and cleanrooms, ensuring cleanliness and safety.
- 4Compatible with operating pressures from -0.095 MPa to 1 MPa, making it versatile for various applications.
- 5Constructed from high-alloy stainless steel, ensuring long-lasting performance and resistance to corrosion.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 7.9mm |
Mounting position | Any | Design | Bulkhead |
Pack size | 1 | Structural design | Push-pull principle |
Operating pressure for entire temperature range | -13.775psi 145psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 4 - Particularly high corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
For use in the food industry | See supplementary material information | Ambient temperature | -15°C 120°C |
Product weight | 87g | Usable connector cables | PFAN |
Pneumatic connection 1 | for pneumatic tubing outside diameter 12 mm | Pneumatic connection 2 | for pneumatic tubing outside diameter 12 mm |
Note on materials | RoHS-compliant | Housing material | High-alloy stainless steel |
Releasing ring material | High-alloy stainless steel | Nut material | High-alloy stainless steel |
Material of tubing seal | FPM | Material of tube retaining claw | High-alloy stainless steel |
Thrust ring material | High-alloy stainless steel | Manufacturer ID | 164217 |
Specifications may be subject to change without notice
