Product Model
crqst-1/4-10
Selling Points

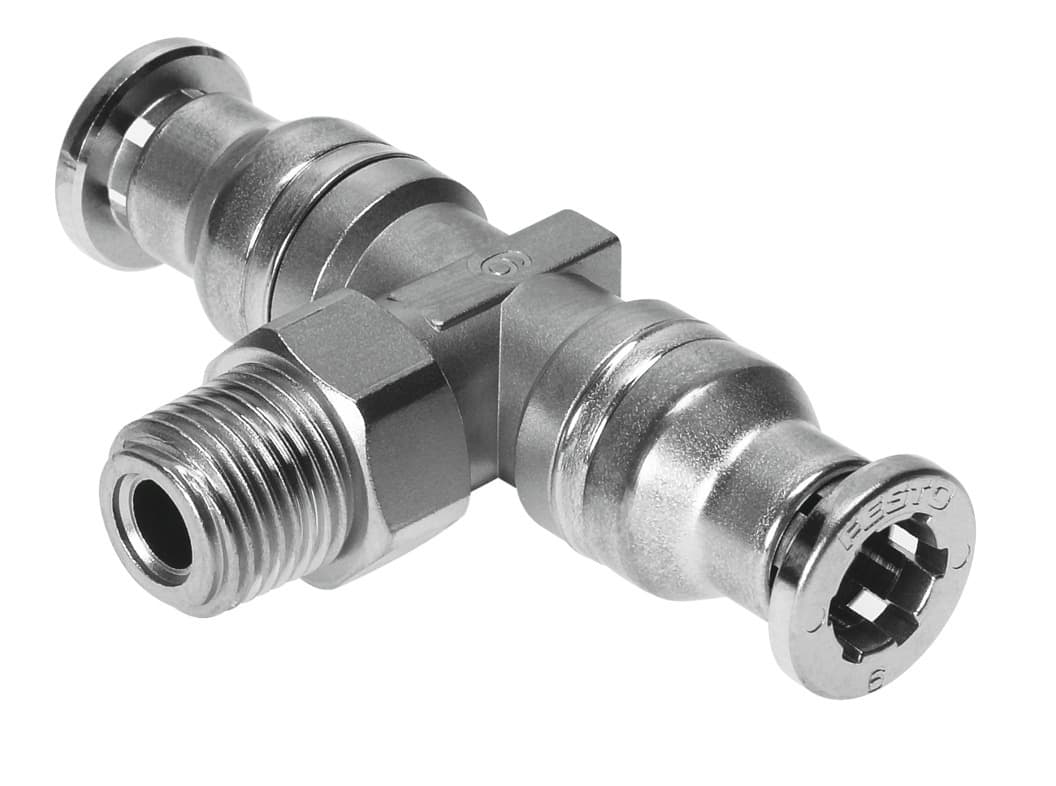

- 1The CRQST-1/4-10 push-in T-fitting is made from high-alloy stainless steel, ensuring maximum corrosion and chemical resistance, making it suitable for various industrial applications.
- 2This T-fitting offers optional mounting positions, allowing for flexible installation in different orientations. It can be mounted in any position, making it adaptable to various pneumatic system configurations.
- 3The CRQST-1/4-10 features a push-pull principle design, which simplifies the connection process and ensures reliable operation. This design also supports lubricated operation, enhancing the overall performance of the fitting.
- 4The CRQST-1/4-10 meets the ISO 8573-1:2010 standard for compressed air and is suitable for use with water as an operating medium, ensuring compliance with industry standards.
- 5With a nominal size of 5.9 mm and a product weight of 56 grams, the CRQST-1/4-10 is a compact and lightweight solution for pneumatic systems, making it easy to handle and integrate into various applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 5.9mm |
Mounting position | Any | Design | T-shape |
Pack size | 1 | Structural design | Push-pull principle |
Operating pressure for entire temperature range | -13.775psi 145psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 4 - Particularly high corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
For use in the food industry | See supplementary material information | Ambient temperature | -15°C 120°C |
Product weight | 56g | No. of outlets | 2 |
No. of supply lines | 1 | Usable connector cables | PFAN |
Type of mounting | External hexagon, AF 17 | Pneumatic connection 1 | External thread R1/4 |
Pneumatic connection 2 | for pneumatic tubing outside diameter 10 mm | Material of screwed plug | High-alloy stainless steel |
Note on materials | RoHS-compliant | Housing material | High-alloy stainless steel |
Releasing ring material | High-alloy stainless steel | Material of tubing seal | FPM |
Material of tube retaining claw | High-alloy stainless steel | Thrust ring material | High-alloy stainless steel |
Manufacturer ID | 164205 |
Specifications may be subject to change without notice
