Product Model
crqst-4
Selling Points

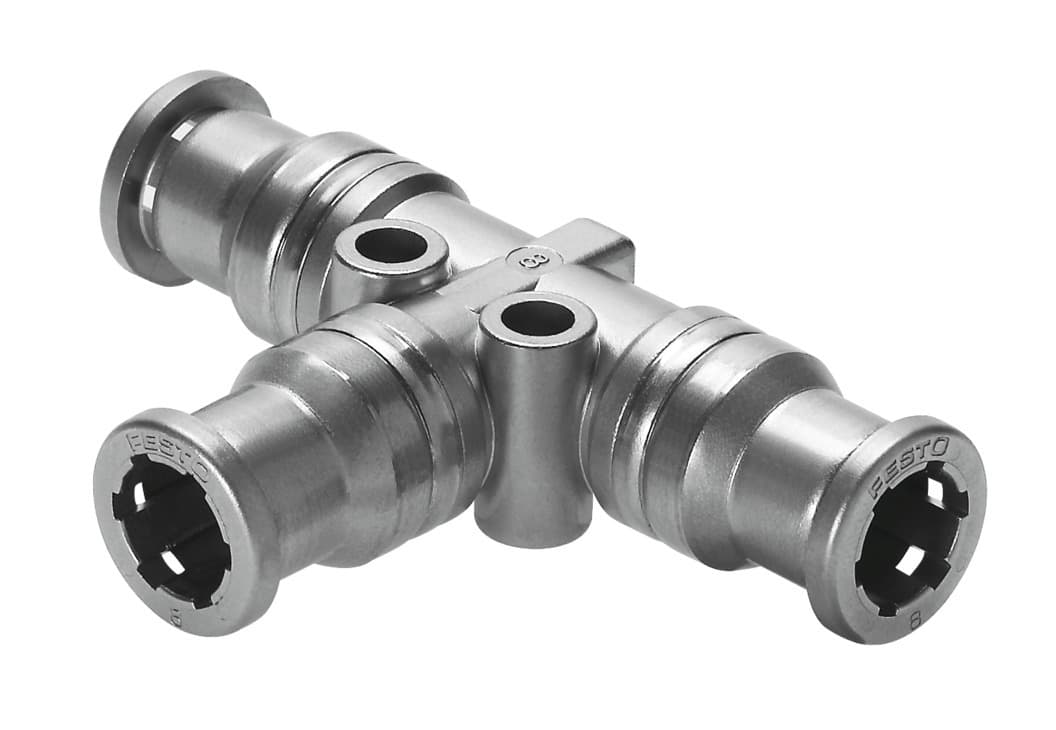

- 1The Festo CRQST-4 Series Tee Tube-to-Tube Adaptor is designed for high-pressure pneumatic connections, ensuring reliable and efficient operation in various industrial applications.
- 2This adaptor features a push-in connection style, making it easy to install and maintain, with a nominal size of 4 mm for precise fitting.
- 3The CRQST-4 series is food-grade and chemical-resistant, making it suitable for use in industries that require high standards of hygiene and safety.
- 4With a maximum operating pressure of up to 14 bar, this adaptor can handle demanding pneumatic systems, ensuring consistent performance under pressure.
- 5Manufactured in Japan, the CRQST-4 series adheres to strict quality standards, ensuring durability and long service life in harsh industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 2.1mm |
Mounting position | Any | Design | T-shape |
Pack size | 1 | Structural design | Push-pull principle |
Operating pressure for entire temperature range | -13.775psi 145psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 4 - Particularly high corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
For use in the food industry | See supplementary material information | Ambient temperature | -15°C 120°C |
Product weight | 18g | No. of outlets | 2 |
No. of supply lines | 1 | Usable connector cables | PFAN |
Pneumatic connection 1 | for pneumatic tubing outside diameter 4 mm | Pneumatic connection 2 | for pneumatic tubing outside diameter 4 mm |
Note on materials | RoHS-compliant | Housing material | High-alloy stainless steel |
Releasing ring material | High-alloy stainless steel | Material of tubing seal | FPM |
Material of tube retaining claw | High-alloy stainless steel | Thrust ring material | High-alloy stainless steel |
Manufacturer ID | 130668 |
Specifications may be subject to change without notice
