Product Model
crqst-m5-4
Selling Points

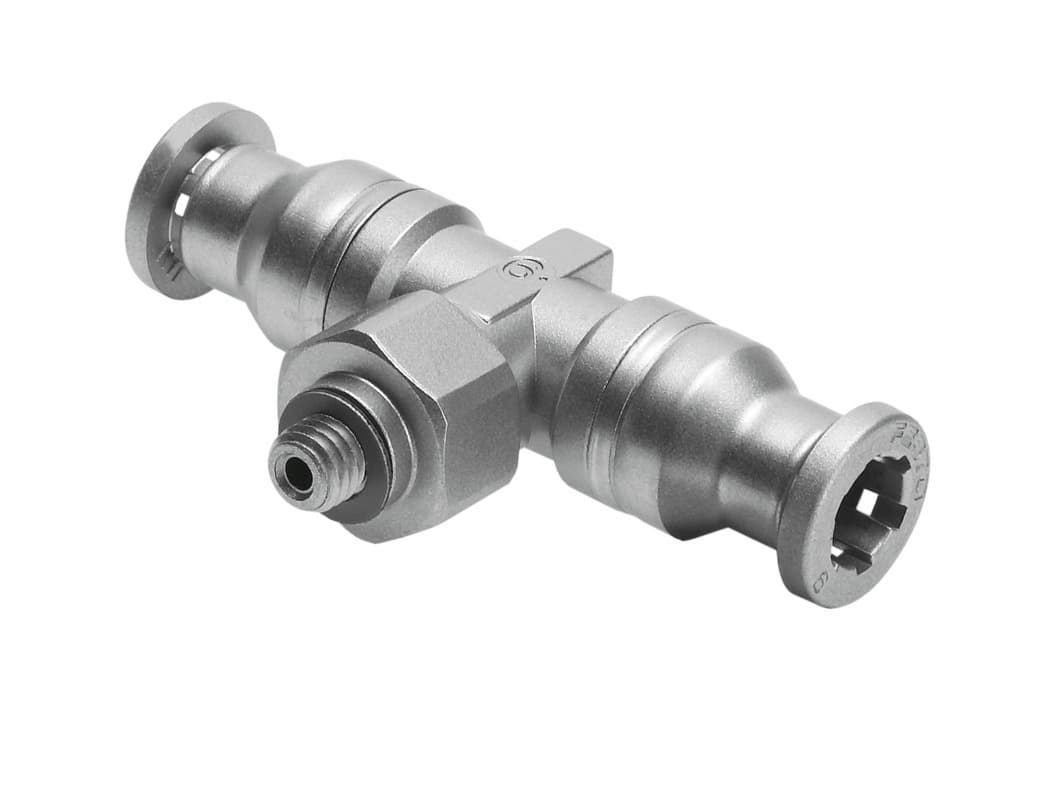

- 1Reliable Pneumatic Connection: The Festo CRQST-M5-4 push-in T-fitting ensures secure and reliable pneumatic connections, ideal for various industrial applications.
- 2High-Pressure Compatibility: This fitting supports operating pressures up to 10 bar, making it suitable for demanding pneumatic systems.
- 3Corrosion-Resistant Design: Constructed from high-alloyed stainless steels, the CRQST-M5-4 offers excellent corrosion resistance, ensuring durability in harsh environments.
- 4Versatile Installation: The T-shape design allows for arbitrary installation positions, providing flexibility in system setup.
- 5Compliant with Industry Standards: The product is RoHS compliant and meets ISO 8573-1:2010 standards for compressed air, ensuring it meets industry requirements.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 2mm |
Type of seal on screwed plug | Sealing ring | Mounting position | Any |
Design | T-shape | Pack size | 1 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 145psi |
Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 4 - Particularly high corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | For use in the food industry | See supplementary material information |
Ambient temperature | -15°C 120°C | Nominal tightening torque | 1.33Nm |
Tolerance for nominal tightening torque | ± 20% | Product weight | 17g |
No. of outlets | 2 | No. of supply lines | 1 |
Usable connector cables | PFAN | Type of mounting | External hexagon, AF 10 |
Pneumatic connection 1 | External thread M5 | Pneumatic connection 2 | for pneumatic tubing outside diameter 4 mm |
Material of screwed plug | High-alloy stainless steel | Note on materials | RoHS-compliant |
Housing material | High-alloy stainless steel | Material of threaded seal | FPM High-alloy stainless steel |
Releasing ring material | High-alloy stainless steel | Material of tubing seal | FPM |
Material of tube retaining claw | High-alloy stainless steel | Thrust ring material | High-alloy stainless steel |
Manufacturer ID | 164200 |
Specifications may be subject to change without notice
