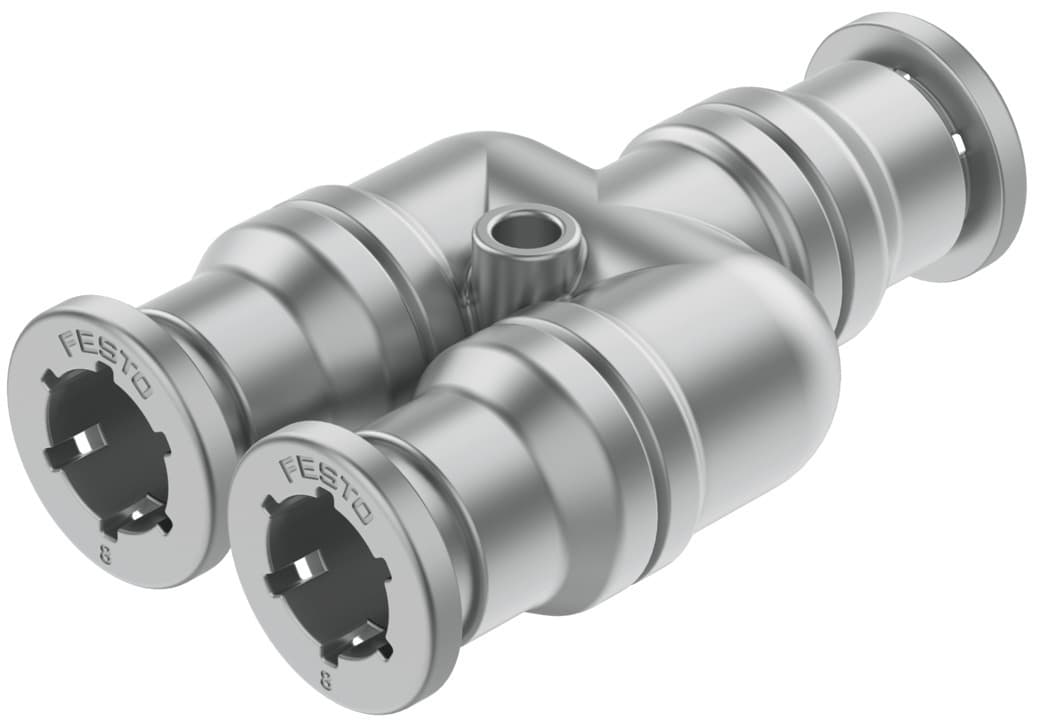

Festo CRQSY-8 Push-in Y-Connector - High-Quality Pneumatic Fittings

Selling Points

1The CRQSY-8 features a standard nominal size of 4.9 mm, ensuring compatibility with various pneumatic systems.
2Its Y-shape design allows for easy connection and disconnection of pneumatic lines, reducing installation time and effort.
3Made from high-alloy stainless steel, the CRQSY-8 offers very high corrosion resistance, making it suitable for use in harsh environments.
4The connector operates within a wide pressure range of -0.095 MPa to 1 MPa (or -13.775 psi to 145 psi), accommodating various pneumatic applications.
5The CRQSY-8 is suitable for use with food and is RoHS-compliant, ensuring it meets stringent environmental and safety standards.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	Standard	Nominal width	4.9mm
Mounting position	Any	Design	Y-shape
Pack size	1	Structural design	Push-pull principle
Operating pressure for entire temperature range	-13.775psi 145psi	Information on operating pressure	Water: max. 0.6 MPa at max. 50 °C
Operating medium	Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)	Information on operating and pilot media	Operation with oil lubrication possible
Corrosion resistance class (CRC)	4 - Particularly high corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
For use in the food industry	See supplementary material information	Ambient temperature	-15°C 120°C
Product weight	34g	No. of outlets	2
No. of supply lines	1	Usable connector cables	PFAN
Pneumatic connection 1	for pneumatic tubing outside diameter 8 mm	Pneumatic connection 2	for pneumatic tubing outside diameter 8 mm
Note on materials	RoHS-compliant	Housing material	High-alloy stainless steel
Releasing ring material	High-alloy stainless steel	Material of tubing seal	FPM
Material of tube retaining claw	High-alloy stainless steel	Thrust ring material	High-alloy stainless steel
Manufacturer ID	130658

Specifications may be subject to change without notice
