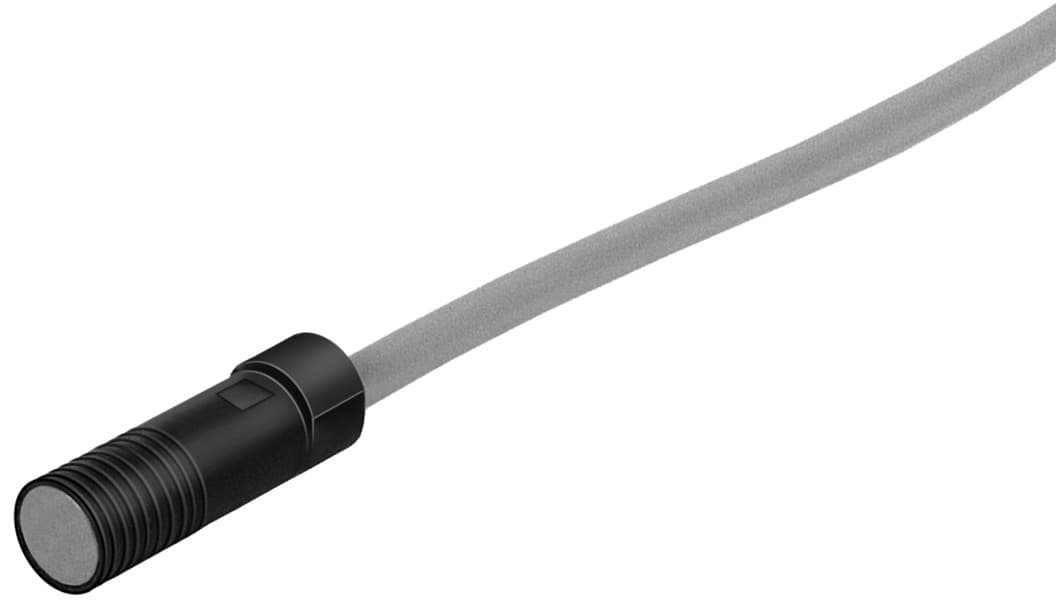

Product Model
crsmeo-4-k-led-24
Selling Points
- 1High Accuracy Positioning: The CRSMEO-4-K-LED-24 offers a repetition accuracy of 0.2 mm, ensuring precise position measurement in various industrial applications.
- 2Robust Design: Constructed from PP material with a black housing, this sensor is durable and resistant to environmental factors, with an operating temperature range of -20 °C to 60 °C.
- 3LED Indication: Equipped with a yellow LED for switching status indication, making it easy to monitor the sensor's operation without additional tools.
- 4IP67 Protection: Designed with IP67 protection, this sensor is suitable for use in harsh environments, ensuring reliable performance even in challenging conditions.
- 5Compliance and Certifications: Meets EU EMC and RoHS directives, as well as UKCA marking, ensuring compliance with international safety standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Design | Round | Symbol | 00991145 |
Certification | RCM compliance mark | CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive |
UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions | Note on materials | RoHS-compliant |
Measured variable | Position | Measuring principle | Magnetic reed |
Ambient temperature | -20°C 60°C | Repetition accuracy | 0.2mm |
Switching output | Contact-based, bipolar | Switching element function | N/O contact |
On time | 0.5ms | Switch-off time | 0.03ms |
Max. switching frequency | 800Hz | Max. output current | 500mA |
Max. switching capacity DC | 10W | Inductive protective circuit | Adapted to MZ, MY and ME coils |
Short-circuit protection | no | Rated operating voltage DC | 24V |
DC operating voltage range | 12V 30V | Reverse polarity protection | no |
Electrical connection 1, connection type | Cable | Electrical connection 1, connection technology | Open end |
Electrical connection 1, number of pins/wires | 3 | Connection outlet orientation | Longitudinal |
Cable length | 2.5m | Color cable sheath | Gray |
Material of cable sheath | TPE-O | Type of mounting | With accessories |
Product weight | 70g | Housing colour | Black |
Housing material | PP | Switching status indication | LED yellow |
Ambient temperature with flexible cable installation | -5°C 60°C | Degree of protection | IP67 |
LABS (PWIS) conformity | VDMA24364-B2-L | Manufacturer ID | 161775 |
Specifications may be subject to change without notice
