Product Model
crsncs-32
Selling Points

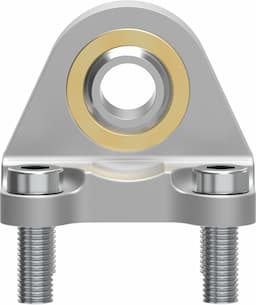

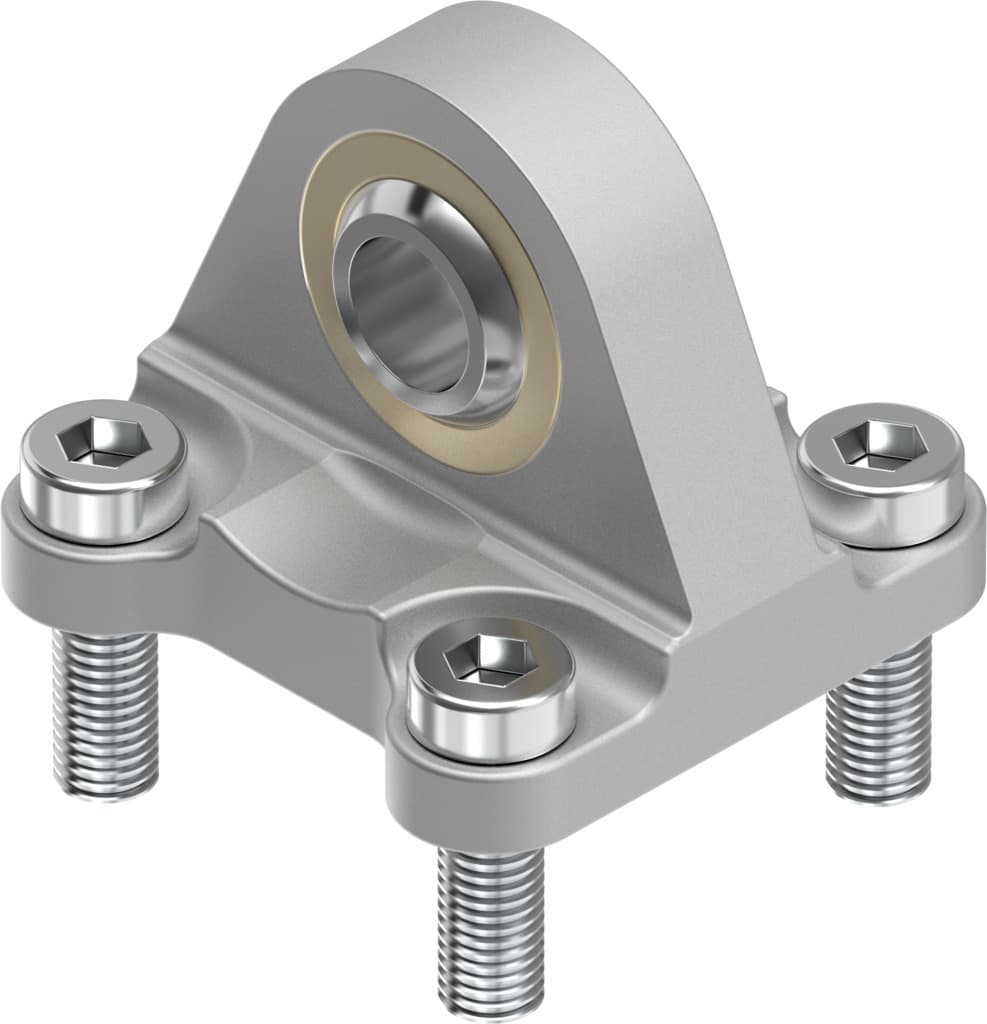

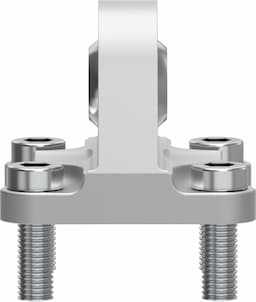

- 1The Festo CRSNCS-32 swivel flange is designed to meet ISO 15552 standards, ensuring compatibility with various industrial systems.
- 2This swivel flange offers high corrosion protection, with a corrosion resistance class of 4, making it ideal for harsh environments.
- 3The CRSNCS-32 is suitable for the production of Li-ion batteries and is compliant with RoHS regulations, ensuring environmental safety.
- 4The product features high-alloy stainless steel for mounting and screws, along with PTFE and stainless steel for the rod end bearing, providing excellent durability.
- 5The swivel flange operates within an ambient temperature range of -40°C to 150°C, making it versatile for a wide range of applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 32 | Based on norm | ISO 15552 (previously also VDMA 24562, ISO 6431, NF E49 003.1, UNI 10290) |
Variants | High corrosion protection | Corrosion resistance class (CRC) | 4 - Particularly high corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L | Suitability for the production of Li-ion batteries | Metals with more than 5% by mass of copper, zinc or nickel by mass are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils |
Ambient temperature | -40°C 150°C | Product weight | 161g |
Note on materials | RoHS-compliant | Mounting material | High-alloy stainless steel |
Rod end bearing material | PTFE Stainless steel | Material of screws | High-alloy stainless steel |
Manufacturer ID | 2895920 |
Specifications may be subject to change without notice
