Product Model
crvzs-2
Selling Points

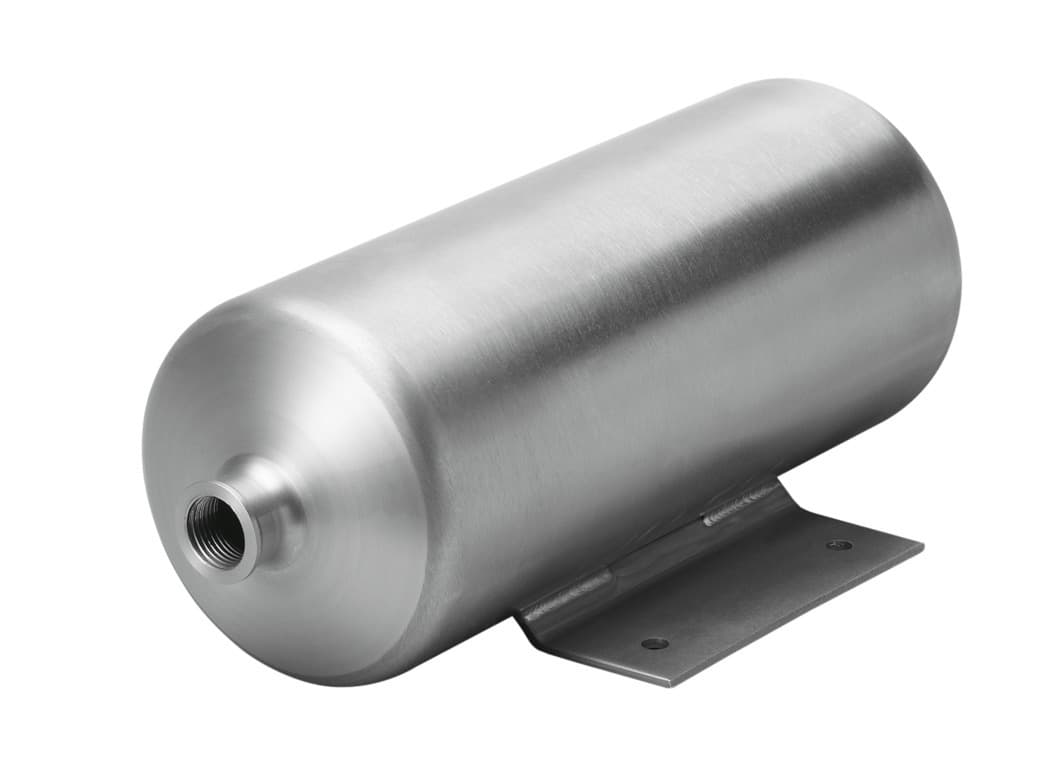

- 1The CRVZS-2 air reservoir offers a 2-liter volume, ideal for storing compressed air and providing a consistent supply to pneumatic systems.
- 2Available with through-hole mounting, this air reservoir can be installed in various configurations to suit different application needs.
- 3Made from high-alloy stainless steel, the CRVZS-2 ensures durability and resistance to corrosion, making it suitable for demanding industrial environments.
- 4Conforms to AD 2000 standards and is certified by the German Technical Control Board (TÜV), ensuring compliance with safety regulations.
- 5Operates within a temperature range of -10°C to 100°C and supports operating pressures from -0.095 MPa to 1.6 MPa, making it versatile for various applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Volume | 2 l | Mounting position | Any |
Conforms to standard | AD 2000 | Symbol | 00991528 |
Operating pressure | -13.78psi 232psi | Certification | CRN German Technical Control Board (TüV) |
Certificate issuing authority | TSSACRN0H17477.5C | Operating medium | Compressed air as per ISO 8573-1:2010 [-:-:-] Nitrogen |
Corrosion resistance class (CRC) | 3 - High corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
For use in the food industry | See supplementary material information | Temperature of medium | -10°C 100°C |
Ambient temperature | -10°C 100°C | Max. tightening torque for connecting thread | 55Nm |
Product weight | 1681g | Type of mounting | With through-hole |
Pneumatic connection | G1/2 | Note on materials | RoHS-compliant |
Air reservoir material | High-alloy stainless steel | Manufacturer ID | 160236 |
Specifications may be subject to change without notice
