Product Model
crvzs-5
Selling Points

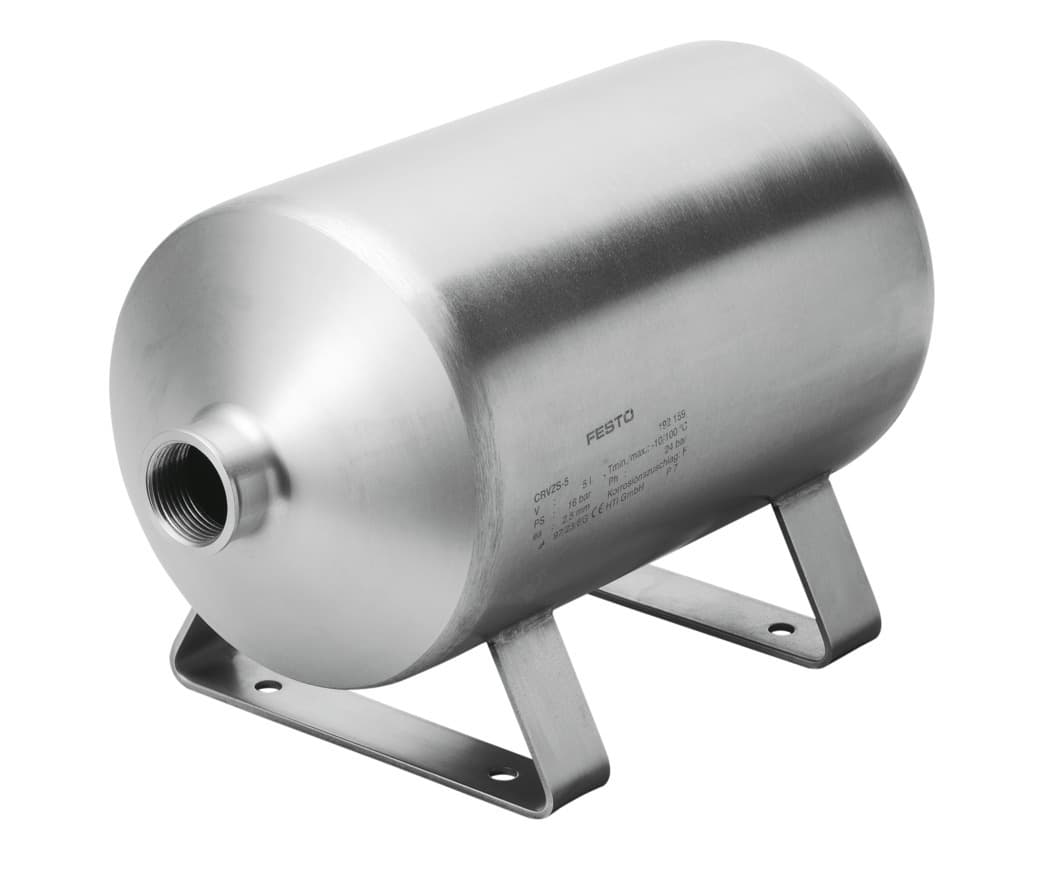

- 1The CRVZS-5 air reservoir stores 5 liters of compressed air, providing a reliable source for pneumatic systems.
- 2Equipped with a condensate drain underneath, this air reservoir ensures efficient condensate removal, maintaining system performance.
- 3Made from high-alloy stainless steel, the CRVZS-5 offers high corrosion resistance, making it suitable for use in harsh environments.
- 4Conforms to AD 2000 and EU Pressure Equipment Directive, ensuring compliance with stringent safety standards.
- 5Suitable for various industrial applications, including compensation of pressure fluctuations and supply of fast clocking drives, making it a versatile addition to any pneumatic system.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Volume | 5 l | Mounting position | Condensate drain downwards |
Conforms to standard | AD 2000 | Symbol | 00991474 |
Operating pressure | -13.78psi 232psi | Certification | German Technical Control Board (TüV) |
CE marking (see declaration of conformity) | as per EU pressure equipment directive | UKCA marking (see declaration of conformity) | according to UK regulations for pressure equipment |
Operating medium | Compressed air as per ISO 8573-1:2010 [-:-:-] Nitrogen | Corrosion resistance class (CRC) | 3 - High corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | For use in the food industry | See supplementary material information |
Temperature of medium | -10°C 100°C | Ambient temperature | -10°C 100°C |
Max. tightening torque for connecting thread | 130Nm | Max. tightening torque for condensate drain | 27Nm |
Product weight | 3581g | Type of mounting | With through-hole |
Condensate drain connection | G3/8 | Pneumatic connection | G1 |
Note on materials | RoHS-compliant | Air reservoir material | High-alloy stainless steel |
Manufacturer ID | 192159 |
Specifications may be subject to change without notice
