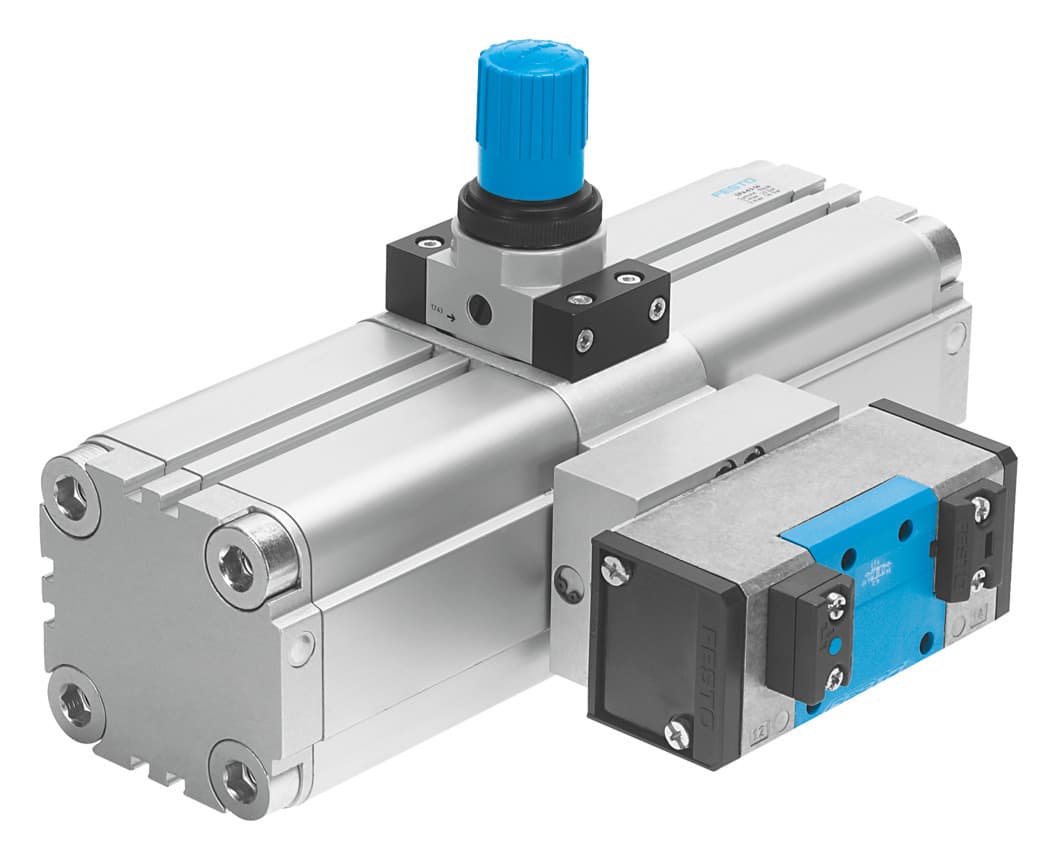

Product Model
dpa-100-16
Selling Points
- 1Generates higher pressures up to 16 bar.
- 2Twin-piston design for efficient pressure boosting.
- 3Versatile mounting options for any assembly position.
- 4Prepared for G1/4 pressure gauge connection.
- 5Corrosion-resistant components suitable for industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Piston diameter | 100 mm | Mounting position | Any |
Structural design | Twin-piston pressure intensifier | Symbol | 00991432 |
Pressure gauge | G1/4 prepared | Output pressure 2 | 58psi 232psi |
Outlet pressure 2 | 4bar 16bar | Operating pressure | 29psi 145psi |
Pressure regulation range MPa | 0.4MPa 1.6MPa | Pressure regulation range | 4bar 16bar |
Pressure regulation range psi | 58psi 232psi | Inlet pressure 1 | 2bar 10bar |
Inlet pressure 1 MPa | 0.2MPa 1MPa | Inlet pressure 1 psi | 29psi 145psi |
Information on pressure regulation range | If the controller spring is tensioned to the maximum, the maximum output pressure may be exceeded by 40%. | Operating medium | Compressed air as per ISO 8573-1:2010 [7:3:4] |
Information on operating and pilot media | Operation with oil lubrication not possible | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Storage temperature | 5°C 60°C |
Ambient temperature | 5°C 60°C | Product weight | 13000g |
Type of mounting | With internal thread | Pneumatic connection 1 | G1/2 |
Pneumatic connection 2 | G1/2 | Pneumatic connection 3 | G1/2 |
Note on materials | RoHS-compliant | Manufacturer ID | 188399 |
Specifications may be subject to change without notice
