Product Model
dpa-40-10
Selling Points

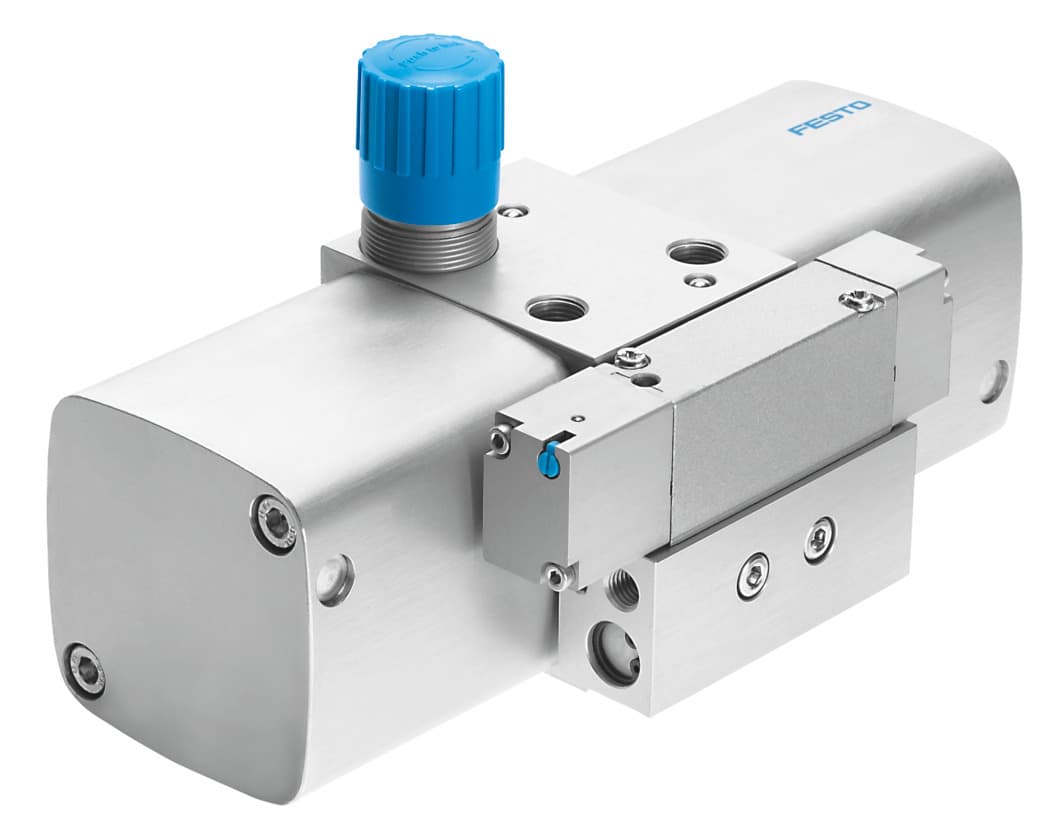

- 1The Festo DPA-40-10 is designed to efficiently compress air, providing a pressure ratio of 1:2 for reliable output pressures up to 10 bar.
- 2This pressure booster features a compact construction and can be mounted in any position, making it versatile for various industrial applications.
- 3With its durable design and high-quality materials, the DPA-40-10 offers a long service life, minimizing downtime and maintenance needs.
- 4The product conforms to ISO 1179-1 and ISO 228-1, ensuring it meets the highest standards of quality and performance.
- 5The DPA-40-10 is designed with ease of installation and maintenance in mind, featuring a pressure gauge set and check valves for smooth operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Piston diameter | 40 mm | Mounting position | Any |
Structural design | Twin-piston pressure intensifier | Symbol | 00991432 |
Pressure gauge | G1/8 prepared | Output pressure 2 | 65.25psi 145psi |
Outlet pressure 2 | 4.5bar 10bar | Operating pressure | 36.25psi 116psi |
Pressure regulation range MPa | 0.45MPa 1MPa | Pressure regulation range | 4.5bar 10bar |
Pressure regulation range psi | 65.25psi 145psi | Inlet pressure 1 | 2.5bar 8bar |
Inlet pressure 1 MPa | 0.25MPa 0.8MPa | Inlet pressure 1 psi | 36.25psi 116psi |
Information on pressure regulation range | If the controller spring is tensioned to the maximum, the maximum output pressure may be exceeded by 40%. | Operating medium | Compressed air as per ISO 8573-1:2010 [7:3:4] |
Information on operating and pilot media | Operation with oil lubrication not possible | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Storage temperature | 5°C 60°C |
Ambient temperature | 5°C 60°C | Product weight | 1500g |
Type of mounting | With internal thread | Pneumatic connection 1 | G1/4 |
Pneumatic connection 2 | G? | Pneumatic connection 3 | M7 |
Note on materials | RoHS-compliant | Manufacturer ID | 537273 |
Specifications may be subject to change without notice
